Quick Overview

The Luminary Global Box Stove Kit is a multi-fuel field cooking system designed for emergency preparedness, vehicle-based sustainment, and base camp operations, enabling operators to heat food and water reliably when power infrastructure fails or field conditions demand an off-grid cooking capability.

The kit is built around a folding galvanized steel body that forms a stable 4.5" x 4.5" cooking platform capable of supporting heavy cookware including cast iron skillets and multi-liter pots. An adjustable fuel shelf inserts at two positions: high position for Fire Discs and solid fuel tablets when rapid boiling is the priority, and low position for biomass, alcohol burners, or canned heat sources when simmering is required. The four-wall design also functions as an integrated windscreen, improving fuel efficiency in exposed field environments.

Each kit includes five Fire Discs, each providing approximately 25 minutes of consistent high-temperature burn time and sufficient output to boil one to two liters of water per disc under standard conditions. Total supplied burn time from the included Fire Discs is approximately 125 minutes. When Fire Discs are depleted, the stove accepts locally sourced biomass such as twigs, bark, and pinecones, giving the operator an indefinite cooking capability with no resupply requirement.

Deployment protocol follows four phases: site selection and preparation, stove assembly and configuration, fuel ignition and operation, and shutdown with stowage. The stove is rated for outdoor use only due to carbon monoxide production and must never be operated inside any enclosed space including tents, vehicles, or garages.

---

Field Application Steps

1. SELECT AND PREPARE YOUR SITE: Choose a level, non-flammable surface such as dirt, gravel, or concrete. Maintain a minimum of five feet of clearance in all directions from flammable materials including tents, dry grass, and fuel containers.

2. VERIFY OVERHEAD CLEARANCE: Inspect the space directly above the stove for low-hanging branches, tarps, or any other obstructions before proceeding with assembly.

3. STAGE FIRE SAFETY RESOURCES: Position a fire extinguisher, bucket of water, or pile of sand within immediate reach before igniting any fuel source.

4. UNFOLD AND FORM THE STOVE BODY: Open the four hinged galvanized steel panels into a square box configuration, confirming the structure is stable and seated correctly on your surface.

5. CONFIGURE THE FUEL SHELF: Insert the adjustable fuel shelf at the correct height for your fuel type. Use the high position for Fire Discs or solid fuel tablets to maximize heat transfer for rapid boiling. Use the low position for biomass, alcohol burners, or canned heat sources to allow adequate combustion space and airflow for simmering.

6. PLACE FUEL ON THE SHELF: Set one unwrapped Fire Disc centered on the fuel shelf, or arrange a small pile of dry tinder and kindling if using biomass.

7. IGNITE FUEL AND CONFIRM STABLE FLAME: Using a lighter, matches, or ferrocerium rod, ignite the fuel source. Allow the flame to establish fully and burn steadily before placing any cookware on the stove.

8. POSITION COOKWARE: Place your pot or pan onto the top cooking surface, centering it carefully to ensure contact at all four support points and confirming it is stable before stepping back.

9. MONITOR AND MANAGE THE BURN: Observe the cooking process throughout. If using biomass, feed small twigs through the front access panel as needed without removing cookware. Do not overload the combustion chamber, as excess fuel will restrict airflow and smother the fire.

10. EXTINGUISH AND COOL DOWN: Once cooking is complete, allow the fuel to burn out fully. If immediate extinguishment is required, apply water or sand carefully. Do not touch or move the stove for a minimum of 30 to 45 minutes after use, as all metal surfaces retain extreme heat.

11. CLEAN THE STOVE: Once fully cooled, invert the stove body to clear remaining ash and debris. Use a dry cloth or brush to remove soot from all surfaces, as soot buildup retains moisture and accelerates corrosion.

12. STOW FOR NEXT DEPLOYMENT: Fold the stove flat and store it alongside the fuel shelf and any unused Fire Discs in a dry, protected location such as a dedicated pouch or the original packaging.

---

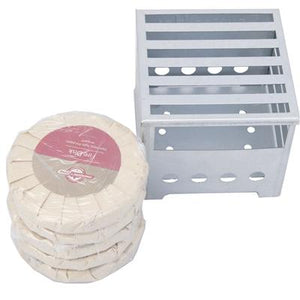

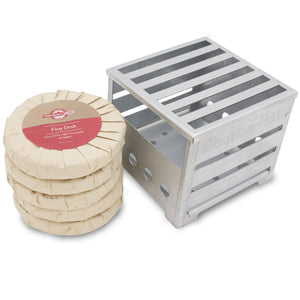

Equip Yourself: Box Stove Kit with 5 Fire Discs – Adjustable Outdoor Cooker
