Emergency Dynamo Radio & Flashlight: Field Operations Manual

Category: Flashlights

Difficulty Level: Tier 1: No Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Dynamo Multi-Function Device is a hand-crank emergency tool used by prepared civilians and operators to sustain illumination, monitor emergency broadcasts, signal for rescue, and perform critical device charging when power grids and primary battery sources have failed.

The device operates as a tertiary backup system, generating electrical power solely through manual hand-crank rotation at approximately 1.5 rotations per second. Its core operational advantage is complete independence from consumable batteries and external power infrastructure, making it field-ready in austere environments where no other power source remains available. Designated deployment locations include vehicle emergency kits, individual go-bags, and home preparedness kits.

The illumination system delivers two capability tiers through a 3-LED array: LOW mode provides approximately 90 minutes of light per minute of cranking for navigation and ambient use, while HIGH mode delivers maximum brightness for task-oriented work at approximately 30 minutes per minute of cranking. The information system includes AM and FM band reception, a telescopic antenna, and a 3.5mm headphone jack that enables silent monitoring to conserve power and maintain noise discipline during active deployment.

Charging capability through the USB Type-A output port is limited by design and should be treated as a protocol of last resort. Continuous cranking is required to deliver a low-amperage charge sufficient for a single brief call or text message. The siren system emits a high-pitched audible alarm for distress signaling and should be used in short, deliberate bursts to maximize signal probability while managing power consumption.

Field Application Steps

1. INSPECT BEFORE DEPLOYMENT: Before placing the device in any kit, check the casing for cracks, inspect the LED housing for damage, confirm the crank handle and telescopic antenna move freely without binding, and verify the USB adapter cable is present and stored with the unit.

2. GENERATE INITIAL POWER: Unfold the hand crank handle fully, secure a firm grip on the device body, and rotate the crank at a steady pace of approximately 1.5 rotations per second for a minimum of 60 continuous seconds to build an initial charge in the internal capacitor.

3. DEPLOY ILLUMINATION: Stow the crank handle flush with the body, locate the Light Mode Switch, and slide to LOW (1 LED) for navigation and long-term ambient light or HIGH (3 LEDs) for task-oriented work such as first aid or circuit inspection. Turn the switch to OFF when light is not actively needed to conserve stored charge.

4. ESTABLISH RADIO RECEPTION: Extend the telescopic antenna fully before powering on the radio. Turn the Volume/Power Dial clockwise until it clicks to activate the radio, select AM or FM using the Band Selector, and slowly turn the Radio Tuner Dial until a clear emergency broadcast station is found. Adjust antenna orientation as needed to improve signal quality.

5. MANAGE AUDIO AND POWER: Set volume to an appropriate level using the Volume/Power Dial. For noise discipline or power conservation, connect personal earphones to the 3.5mm Headphone Jack to avoid driving the main speaker.

6. EXECUTE EMERGENCY DEVICE CHARGING: Connect the USB Adapter Cable to the device requiring a charge, then plug the USB-A end into the USB Output Port on the dynamo unit. Unfold the crank handle and maintain continuous, steady cranking throughout the entire charging session. Crank for several minutes to accumulate enough power for a short emergency call or text message, then disconnect the cable and stow the handle when the action is complete.

7. ACTIVATE DISTRESS SIREN: Pre-charge the unit by cranking for at least 30 to 60 seconds before activating the siren. Locate the dedicated Siren Switch on the device body and slide it to ON to emit the audible alarm. Use short, deliberate bursts to conserve power while maximizing the probability of being located. Slide the switch to OFF when the siren is not needed.

8. PERFORM QUARTERLY FUNCTION CHECK: Every three months, crank for 60 seconds, then verify both LOW and HIGH flashlight modes, confirm radio reception on both AM and FM bands with audio output, and verify the siren activates. Store the unit in a dry, readily accessible location away from direct sunlight and areas of extreme temperature fluctuation such as a vehicle dashboard.

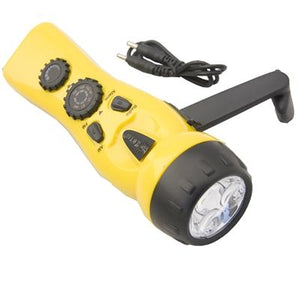

Emergency Dynamo Flashlight & Radio – 4-in-1 Hand Crank Charger
