Quick Overview

A weather band radio is a compact, battery-powered, receive-only device that emergency operators use to monitor NOAA alerts, AM and FM broadcasts, and civil authority instructions when cellular networks, internet, and grid power are unavailable.

This device is designed for passive signal reception across three bands: AM (520 to 1710 kHz) for long-range news, FM (87 to 108 MHz) for local broadcasts, and NOAA Weather Band (162.400 to 162.550 MHz) for official emergency alerts. Deployment requires no technical infrastructure, making it a reliable information source when all other channels have failed. The radio is powered by two AAA batteries and operated entirely through analog controls, which eliminates digital dependency and keeps the operator functional in grid-down conditions.

Signal acquisition follows a priority sequence: attempt NOAA Weather Band first, then fall back to AM, then FM. Reception can be improved by positioning near exterior walls, adjusting antenna angle, and rotating the radio body to optimize the internal ferrite bar antenna on AM. Operators should tune slowly, pausing two to three seconds at any detected signal, as manual scanning requires patience and fine motor control with no preset or digital scan capability available.

Readiness requires sustained discipline beyond the moment of deployment. Batteries must be replaced annually regardless of use, removed from the compartment for storage exceeding three months, and stored alongside the unit in a waterproof container. A quarterly systems check covering all three bands, antenna integrity, and battery terminal condition ensures the radio remains field-ready when the situation demands it.

Field Application Steps

1. CONFIRM BATTERY READINESS: Open the rear battery compartment and verify two AAA batteries are installed with correct polarity per the markings. Inspect terminals for corrosion and clean with a dry cloth if needed, then secure the compartment cover before proceeding.

2. EXTEND AND ORIENT THE ANTENNA: Fully extend the telescoping antenna and point it vertically. This position is required for FM and Weather Band reception; antenna orientation has minimal effect on AM reception.

3. POWER ON THE DEVICE: Rotate the Volume/Power Dial clockwise until a click is heard to confirm activation. Set volume to a low but comprehensible level to conserve battery life during extended monitoring.

4. SELECT WEATHER BAND AS PRIMARY: Slide the Band Selector Switch to the WB position. NOAA Weather Radio broadcasts operate between 162.400 and 162.550 MHz.

5. SCAN FOR SIGNAL WITH CONTROLLED TUNING: Rotate the Tuning Dial very slowly across the WB frequency range. Pause two to three seconds at any detected signal before continuing, as rushing this process will likely result in missing a viable broadcast.

6. OPTIMIZE SIGNAL IF RECEPTION IS WEAK: Move toward a window or exterior wall and away from electronics and large metal objects. Adjust the antenna angle incrementally until audio clarity improves.

7. FALL BACK TO AM IF NO WB SIGNAL IS FOUND: Slide the Band Selector to AM and rotate the entire radio body horizontally to optimize the internal ferrite bar antenna. Scan slowly for emergency broadcast stations.

8. FALL BACK TO FM IF AM YIELDS NO RESULT: Select FM and repeat the slow tuning procedure across the 87 to 108 MHz range to locate local news or emergency broadcasts.

9. MONITOR FOR ACTIONABLE INFORMATION: Once a clear signal is established, listen for alert type (watch or warning), geographic areas affected, shelter-in-place or evacuation instructions, designated routes, and expected event duration. Monitor at regular intervals as directed by the broadcast.

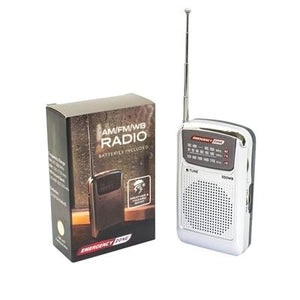

Equip Yourself: Emergency Zone Weather Band Radio – Compact AM/FM & NOAA Alert Receiver
