EVAC Systems Double-Ended Rope Bag: Field Manual & SOP

Category: Climbing Rope Bags

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The EVAC Systems Double-Ended Rope Bag is a specialized rope management system used by trained rescue technicians and rope access professionals to deploy, connect, and manage static lines in high-angle, confined space, and technical rescue operations.

The Double-Ended Rope Bag provides a critical capability that standard single-opening bags cannot: simultaneous access to both the working end and the standing end of a loaded rope without unpacking the system. The dual drawstring closure design allows the top opening to serve as the primary deployment portal while the bottom opening provides on-demand access to the pre-rigged standing end. This architecture enables rope-to-rope connections, fixed anchor establishment, and pass-through line management under operational conditions.

Proper loading protocol is foundational to safe deployment. The standing end is fed through the bottom opening and secured with a stopper knot, sized larger than the fully opened grommet, before the rope is flaked into the bag from the top in a clean, hockle-free sequence. Both ends must be clearly marked before any operation to prevent end-identification errors under stress. Capacity limits are strictly enforced: the medium bag holds 225 feet of half-inch rope and the large bag holds 325 feet of half-inch rope. Exceeding these limits causes binding and places undue stress on the system.

The bag itself is a critical component of the life safety system, not a passive container. Pre-use inspection covers fabric integrity, drawstring function, interior cleanliness, and legibility of capacity markings. Post-use protocol requires full emptying, cleaning, and complete air drying before storage. Any damage that compromises the bag's ability to protect or deploy the rope requires its immediate removal from service.

Field Application Steps

1. INSPECT THE BAG: Check the bag fabric for cuts, punctures, abrasion, and chemical contamination. Operate both drawstrings to confirm they cinch and release correctly, and verify the interior is clean, dry, and free of sharp objects.

2. INSPECT THE ROPE: Inspect the rope per your department's standard operating procedure before loading. Do not load a rope that has not been cleared for operational use.

3. LOAD THE STANDING END: Feed one rope end through the bottom opening from the inside out. Tie a secure stopper knot, such as a Figure-Eight on a Bight, on the outside of the bottom opening. The knot must be larger than the fully opened grommet. Cinch the bottom drawstring securely.

4. FLAKE THE ROPE: Place the bag on a clean, flat surface. Flake the entire rope length into the bag from the top opening in a clean, methodical sequence to prevent twists and hockles from forming in the loaded system.

5. SECURE THE WORKING END AND MARK THE BAG: Cinch the top drawstring to secure the working end. Clearly mark the bag to identify which end is Top (working) and which is Bottom (standing) before moving to the operational area.

6. TRANSPORT AND STAGE THE BAG: Move the loaded bag to the operational area maintaining positive control at all times. If operating at height, anchor or stabilize the bag to a structure, anchor point, or harness before opening either closure.

7. DEPLOY FROM THE TOP FOR STANDARD OPERATIONS: Open the top drawstring and pay out the required rope length to build the rigging system. This is the primary deployment portal for anchoring, rappel device loading, and standard lowering operations.

8. ACCESS THE BOTTOM FOR ROPE-TO-ROPE CONNECTION: When connecting two ropes mid-operation, deploy Rope A from its top opening as required. As Rope A's working end approaches the anchor, open the bottom drawstring of the Rope B bag to expose the stopper knot and standing end.

9. JOIN THE ROPES: Connect Rope A's working end to Rope B's standing end using an appropriate bend, such as a Figure-Eight Bend. Confirm the connection is properly dressed and set before proceeding.

10. EXECUTE THE PASS-THROUGH: With the ropes joined, the system is ready for controlled pass-through operation. Maintain verbal and visual confirmation of which end is active at all times throughout the evolution.

11. POST-OPERATION INSPECTION AND MAINTENANCE: Empty the bag completely after every operation or training evolution. Clean the interior and exterior of all dirt, mud, and debris using a brush and mild soap with water if needed. Allow the bag to air dry completely before storing to prevent mildew and fabric degradation.

12. STORE THE BAG CORRECTLY: Store the clean, dry bag in a climate-controlled environment away from direct sunlight, chemicals, and petroleum or battery fumes. Do not place heavy or sharp objects on top of the bag during storage.

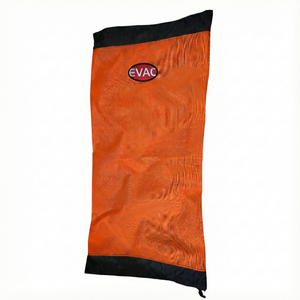

Equip Yourself: EVAC Systems Double-Ended Rope Bag – Dual Access Rescue Carrier
