EVAC Systems EP201 Fire Hose Backpack: Field Manual & SOP

How to Guides - Product Field Manual SOPs - Luminary Global

EVAC Systems EP201 Fire Hose Backpack: Field Manual & SOP

Category: Backpacks

Difficulty Level: Tier 3: Field Competency Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

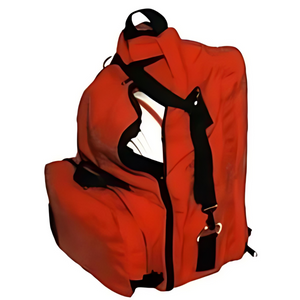

The EVAC Systems EP201 Fire Hose Backpack is a tactical transport system used by firefighters to carry pre-configured hose loads and appliances into high-rise, wildland, industrial, and rapid intervention environments where direct apparatus access is unavailable.

The EP201 converts an unbalanced, cumbersome hose bundle into a stabilized, ergonomic load that a single operator can carry over significant vertical or horizontal distances. The 1000 Denier Cordura body provides abrasion, heat, and moisture resistance during transport through hazardous fireground environments. The main compartment measures 19 by 15 by 24 inches and accommodates 100 to 150 feet of 1.75-inch or 2-inch hose plus appliances including nozzles, gated wyes, and spanner wrenches. Fully loaded, the pack can exceed 80 lbs, requiring proper lifting technique and correct strap adjustment.

The carry system supports three distinct deployment modes depending on operational tempo. Adjustable padded shoulder straps distribute load across the back for extended ascents, leaving hands free for tools, radio, or door management. A detachable cross-body strap enables rapid donning and doffing between the apparatus and entry points. Reinforced steel D-rings serve as the exclusive attachment points for hoisting operations using rated life-safety rope.

System readiness is contingent on correct hose packing protocol. Hose must be loaded in an accordion fold or double-donut configuration with the male coupling accessible for immediate standpipe connection. Post-mission inspection of seams, stitching, buckles, and D-ring hardware is required after every operational use to maintain field-ready status.

Field Application Steps

1. CONFIRM PACK CONTENTS: Verify the pack contains the required hose length, 100 to 150 feet of 1.75-inch or 2-inch hose, and all required appliances including nozzle, standpipe valve, and spanner wrenches.

2. VERIFY HOSE PACKING CONFIGURATION: Confirm hose is packed in an accordion fold or double-donut configuration with the male coupling positioned at the top and accessible for immediate connection upon arrival at the standpipe.

3. DON PPE AND PACK: Put on full PPE and SCBA before donning the pack. Place the pack using the primary padded shoulder straps and cinch all straps securely to distribute load across the shoulders and back.

4. SECURE ALL LOOSE STRAP ENDS: Remove the cross-body strap if not in use and stow it. Secure all remaining strap ends before entering the structure to eliminate snag hazards in the IDLH environment.

5. ASCEND WITH THREE POINTS OF CONTACT: Proceed to the designated stairwell and maintain contact with handrails throughout the ascent. The backpack configuration keeps hands free for a forcible entry tool and thermal imaging camera.

6. POSITION AND ORIENT THE PACK: Upon reaching the target floor, doff the pack. Orient the wide-mouth opening in the direction of hose deployment to enable smooth, snag-free pay-out.

7. CONNECT TO STANDPIPE OUTLET: Remove the male coupling from the pack and connect it to the standpipe outlet. Hand-tighten the connection first, then complete the seal with spanners per departmental protocol.

8. ADVANCE THE HOSELINE: The nozzle operator grasps the nozzle and advances toward the fire. A second firefighter manages the hose at the pack to prevent kinks and snags during deployment.

9. CHARGE THE LINE: Once the hoseline is fully deployed, all personnel are clear of the hose path, and the nozzle operator is in position, call for the standpipe to be charged per established communications protocol.

10. CONDUCT POST-MISSION INSPECTION: After every operational use, empty the pack and inspect the interior and exterior for burns, cuts, tears, and abrasions. Pay close attention to seams, stitching, shoulder strap attachments, and D-ring anchors.

11. INSPECT HARDWARE AND WEBBING: Manipulate all buckles to confirm correct function. Inspect steel D-rings for deformation, cracking, or corrosion. Check all nylon webbing for fraying or UV degradation.

12. CLEAN, DRY, REPACK, AND STAGE: Remove loose dirt and soot with a stiff brush. For heavy contamination, wash with mild detergent and water, rinse thoroughly, and allow the pack to air dry completely before repacking. Store the mission-ready unit in its designated dry apparatus compartment, protected from direct sunlight, sharp objects, and chemical exposure.
