EVAC Systems Eyewash Cover: Field Manual for Safety & Compliance

Category: Duffel Bags

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The EVAC Systems Eyewash Station Cover is a heavy-duty vinyl protective barrier used by safety personnel in industrial, laboratory, and institutional facilities to keep emergency eyewash nozzles and basins free of contamination during standby periods.

The cover is engineered as a passive safety component, meaning it requires no operator action to disengage during an emergency. Its auto-release design allows water jet force or the physical motion of activating the push paddle to instantly displace the cover, ensuring zero delay in irrigation response. A hook-and-loop retention strap permanently affixed to the cover body tethers it to the supply or drain pipe, preventing the displaced cover from becoming a slip or trip hazard on the floor.

Installation protocol requires the cover to sit loosely and evenly over standard 10 to 12 inch round eyewash bowls, with only the retention strap fastened to the plumbing. The cover body must remain free-floating at all times. Securing the cover tightly to the bowl itself is a critical installation failure that can render the station ineffective during a live emergency. Fit verification and a free-release check are mandatory steps following every installation.

Readiness sustainment requires visual inspection aligned with the weekly activation test mandated by ANSI Z358.1-2014. Inspectors check for physical integrity, cleanliness, strap functionality, and correct placement. The cover must be removed from service immediately if tears, punctures, brittleness, or strap failure are observed. Vinyl degradation from prolonged chemical or UV exposure is a known material limitation and should be incorporated into routine inspection checklists.

---

Field Application Steps

1. PREPARE THE STATION: Perform a full functional test and cleaning of the eyewash bowl and nozzles per ANSI Z358.1 guidelines before installing the cover. The station must be confirmed service-ready prior to deployment of the cover.

2. PLACE THE COVER: Drape the main cover body over the eyewash bowl, ensuring it sits loosely and evenly across the full basin interior. The cover must completely shield the nozzles and bowl without being pressed down or fitted tightly.

3. SECURE THE RETENTION STRAP: Wrap the hook-and-loop retention strap around the vertical supply pipe or drainpipe below the bowl and fasten securely. Do not route the strap in any way that restricts the cover body from being freely displaced upon activation.

4. VERIFY FREE RELEASE: Manually lift the cover to simulate activation force. It must come free with minimal resistance. If resistance is felt, recheck and correct strap routing before placing the station back in service.

5. ACTIVATE WITHOUT REMOVING COVER FIRST: In an emergency, approach the station and activate using the push plate, paddle, or foot pedal immediately. Do not attempt to manually remove the cover prior to activation.

6. ALLOW COVER TO AUTO-DISPLACE: Water flow and the physical motion of activation will dislodge the cover automatically. The cover falls clear of the bowl and remains tethered to the plumbing via the retention strap.

7. EXECUTE FLUSH PROTOCOL: Proceed immediately with the standard 15-minute eye flush procedure as required by ANSI Z358.1. No additional action regarding the cover is required during the flush.

8. SECURE THE AREA POST-INCIDENT: Follow medical protocol for the affected personnel. Cordon off the eyewash station area and restrict access to authorized personnel only until the station is reset.

9. CLEAN AND INSPECT THE COVER: Retrieve the tethered cover and wash with mild soap and water. Rinse thoroughly, air dry completely, and inspect for tears, punctures, or brittleness before reinstallation. Do not use acetone, MEK, solvents, or abrasive cleaners.

10. REINSTATE THE STATION: Once the eyewash station is confirmed fully service-ready, reinstall the cover following steps 1 through 4. Document the incident and reset in the station maintenance log.

---

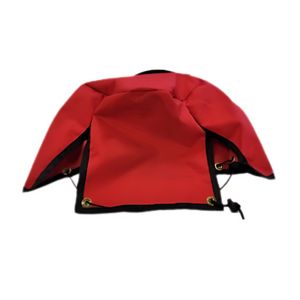

EVAC Systems Eyewash Cover – High-Viz Dust Cap for Safety Stations
