EVAC Systems FDNY RIT Rope Bag Kit: Field Manual & SOP

Category: Climbing Rope Bags

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The EVAC Systems FDNY Style RIT Rope Kit is a rapidly deployable search and orientation line system used by fire-rescue personnel, Rapid Intervention Teams, and confined space entry teams to maintain egress orientation and team accountability inside IDLH environments.

The kit centers on a 200-foot, 7.5mm/8mm search rope stored in a 1000 Denier Cordura bag rated for radiant heat protection up to 500°F. The small diameter is a deliberate design choice for compact storage and low-profile carriage, but operators must maintain heightened awareness of the rope's reduced abrasion and cut resistance compared to larger diameter lifelines. The rope end termination loop anchors to a fixed point outside the hazard zone using a separate, operator-supplied load-rated locking carabiner, defining the maximum operational search distance and providing a continuous tactile egress path.

The shoulder carry system features dual seatbelt-style buckles serving two distinct functions: emergency jettison for instant bag release if entanglement occurs, and expedient anchoring of the strap around a structural object without requiring the operator to remove gear. Rope pays out from the top opening as the operator advances, with the bag positioned flat against the hip or back to minimize snag potential in compromised structural environments.

This system is a search and orientation guideline only and is explicitly not rated for life-safety applications. It must never be used for rappelling, ascending, fall protection, hoisting, or lowering of personnel or equipment. After any known thermal exposure, the rope must be removed from service and destroyed regardless of visible damage.

---

Field Application Steps

1. PRE-ENTRY STAGING AND ANCHOR SELECTION: Don the rope bag over one shoulder and adjust the strap for a snug, low-profile fit against the hip or back. Identify a substantial, immovable anchor point outside the IDLH atmosphere, such as a structural column, secured apparatus, or post, positioned along the most direct entry path.

2. SECURE THE ANCHOR POINT: Remove the rope end termination loop from the bag. Using a load-rated, locking carabiner supplied by the operator, attach the loop to the chosen anchor, verbally and physically confirm the gate is locked, then give the line a sharp tug to verify the anchor is set before entry.

3. ENTER AND ADVANCE THE LINE: Enter the structure in a controlled manner, allowing rope to pay out from the top opening of the bag. Keep the bag flat against the hip or back throughout advancement to reduce snag potential. Maintain verbal communication with team members regarding distance traveled and any changes in direction.

4. EXECUTE EMERGENCY JETTISON IF ENTANGLED: If the bag becomes the point of entanglement, locate one of the two chrome seatbelt buckles and depress it firmly. The strap releases and the bag drops free, leaving the operator unencumbered and still oriented on the egress path via the deployed rope. Immediately transition to following the rope back toward the anchor and exit.

5. COMPLETE SEARCH AND RETRIEVE THE LINE: Upon mission completion or exit decision, all team members follow the search line back to entry. The line must remain in place and anchored until every personnel member who utilized it is confirmed accounted for outside the hazard zone.

6. CONDUCT POST-USE INSPECTION: Remove all 200 feet of rope and run it through gloved hands, checking for cuts, nicks, abrasions, glazed or melted spots, discoloration from chemical contamination, and any stiffness, soft spots, or changes in diameter indicating core damage. Inspect the bag for burns, tears, and compromised stitching, and actuate both seatbelt buckles to confirm crisp lock and release function.

7. REPACK FOR NEXT DEPLOYMENT: Confirm the rope is clean and dry, then place the bag on a flat surface. Feed the anchor-end loop into the bottom of the bag first, flake the rope in neat, orderly layers, and place the working deployment end at the very top for immediate payout. Close the top flap. Do not coil or stuff the rope randomly, as improper packing compromises deployment under operational conditions.

8. STORE THE KIT CORRECTLY: Return the repacked kit to a designated apparatus compartment that is clean, dry, and protected from UV light, fuels, oils, hydraulic fluids, and other chemicals that degrade synthetic materials.

---

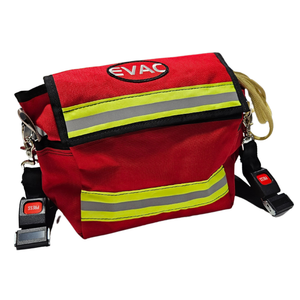

EVAC Systems FDNY Style RIT Rope Kit – Bag with 200’ Search Line
