Quick Overview

A rope bag for emergency escape is a compact, field-ready deployment system carrying a rated lifeline, descender, and connectors that enables trained operators including structural firefighters, tactical law enforcement, and rescue technicians to execute controlled emergency egress from heights up to 50 feet.

The EVAC Systems Personal Escape Kit Model B is built around three operational subsystems: the EP401 Mini Rope Pack for deployment and carry, a 50-foot Sterling 8mm NFPA-rated rope with terminal anchor loop, and a Belay Rescue 8 descender paired with two Omega Pacific D-shape screwgate carabiners. The compact 5-inch by 9-inch profile allows constant wear on turnout gear or tactical vests, ensuring the system is available without impeding operator mobility. Deployment is authorized only under deteriorating, life-safety conditions where primary egress routes are compromised or non-existent.

Anchor selection is the single most consequential decision in the deployment sequence. The system is only as strong as its anchor point, and failure at the anchor is catastrophic. Certified structural elements or immovable load-bearing furniture weighing several times the operator's body weight are required. Plumbing, drywall, and light furniture are explicitly prohibited as anchor points.

Descent control depends entirely on the operator's brake hand managing the rope strand exiting the descender. Releasing the brake strand at any point during descent eliminates system friction and produces an uncontrolled fall. Shock loading through jumping or creating slack can generate forces exceeding equipment limits and cause system failure. Post-use inspection must cover the rope for cuts, burns, and stiff sections, and hardware for cracks, deformation, and gate function before the kit is returned to service.

---

Field Application Steps

1. ACCESS THE SYSTEM AND IDENTIFY ANCHOR: Verbally declare "bail out" intent if operating with a team, then move to the egress point. Remove the EP401 pack via the grab handle or clip and deploy full contents. Identify a bombproof anchor, a structural beam, substantial window framing, or immovable furniture weighing several times your body weight.

2. ESTABLISH ANCHOR CONNECTION: Pass the rope around the anchor and clip the carabiner back onto the rope, or clip the terminal loop directly to the anchor point. Orient the carabiner gate away from edges, avoid side-loading, screw the gate finger-tight, and confirm it is locked.

3. DEPLOY THE ROPE: Feed the remainder of the rope out of the window toward the ground. Confirm there are no tangles, knots, or obstructions along the full length before proceeding.

4. RIG FOR DESCENT: Attach the second carabiner to the rated harness attachment point, either the sternal or ventral D-ring of a Class II or Class III harness. Form a bight from the standing line, pass it through the large ring of the Rescue 8 descender, then pull the bight over and around the small ring. Clip the large ring of the rigged descender into the harness carabiner, screw the gate finger-tight, and confirm it is locked.

5. CONDUCT FULL SYSTEM CHECK: Visually and physically inspect every connection point: anchor secure, both screwgate carabiners locked, Rescue 8 correctly rigged, and harness properly secured. No component in the chain may be unverified before committing weight.

6. TEST TENSION AND ESTABLISH EGRESS POSITION: Position at the egress point and lean back to apply tension without fully committing body weight. The rope must become taut and hold before you proceed. Establish a firm grip on the brake strand with your dominant hand and do not release it at any point during descent.

7. EXECUTE CONTROLLED DESCENT: Commit body weight to the system and move out of the structure in a controlled manner. To descend, allow the brake strand to feed slowly through the brake hand. To slow or stop, bring the brake hand down and inward toward the body to increase friction. Use feet against the structure for stability and scan below for hazards throughout the descent.

8. CLEAR THE LANDING ZONE: Upon reaching the ground, un-rig the descender, detach the harness carabiner, and move immediately clear of the structure. Equipment may be abandoned in place if the situation requires it.

---

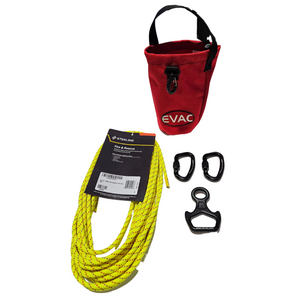

Equip Yourself: EVAC Systems Personal Escape Kit – Model B (Mini Bail-Out Pack)
