EVAC Systems Personal Escape Kit Model I (40') Field Manual SOP

Category: Emergency Tools & Kits

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A rope bag for emergency escape is a compact, deployable life-safety kit that enables a single operator to execute a controlled descent from elevated positions up to 40 feet when primary egress routes are compromised or unavailable.

The EVAC Systems Personal Escape Kit Model I is built around a 40-foot Sterling 8mm NFPA-rated rope, two Omega Pacific screwgate carabiners, a Belay Rescue 8 descender, and the EP401I nylon deployment bag. The system's form factor measures 5.5 by 3 by 5.5 inches, designed for constant-carry readiness in turnout gear pockets, vehicle compartments, maritime vessels, or personal bags. Every component is NFPA-rated for life-safety applications, and the system is classified as a last-resort egress tool, not a recreational or utility rappelling rig.

Deployment protocol follows a six-step sequence: assess the egress point and identify a structural anchor, rig the anchor with a figure-8 on a bight and a locked screwgate carabiner, deploy the rope bag out the egress point, rig the Rescue 8 descender to a rated harness, execute a full pre-descent weight check inside the structure, and then descend with the dominant hand controlling the brake strand below the descender. The brake hand moves back and up to arrest descent and feeds forward slowly to descend. Feet remain on the wall throughout to manage obstacles and control body position.

Readiness sustainment requires periodic inspection every six months or after any exposure event. The rope must be unpacked and inspected tactilely and visually for cuts, flat spots, or contamination. Any component subjected to a live descent or dynamic load must be retired from service immediately, including the rope, carabiners, and descender.

Field Application Steps

1. EXPOSE AND ASSESS: Retrieve the EP401I bag and move to your egress point. Visually confirm the descent path is clear of obstructions, confirm the rope will reach safe ground, and identify a structural anchor point capable of holding a dynamic load.

2. RIG THE ANCHOR: Remove all components from the bag. Tie a figure-8 on a bight at the anchor end of the rope, clip one screwgate carabiner through the resulting loop and around the anchor point, and lock the screwgate gate fully closed.

3. DEPLOY THE ROPE: Drop or feed the EP401I bag containing the remaining rope out the egress opening. Confirm the rope deploys without tangling, reaches the intended landing zone, and has no knots or snags along its length.

4. RIG THE HARNESS AND DESCENDER: Attach the second screwgate carabiner to the load-bearing point of your rated harness and lock the gate. Clip the large opening of the Rescue 8 into the harness carabiner. Thread a bight of rope through the large opening and over the neck of the descender with no crossing in the rope.

5. EXECUTE PRE-DESCENT SAFETY CHECK: Confirm the anchor is solid, the anchor carabiner gate is locked, all harness buckles are secure, the harness carabiner gate is locked, and the Rescue 8 is oriented correctly with the rope seated and uncrossed. With your brake hand firmly on the strand below the descender, slowly apply full body weight while still inside the structure to verify the system holds before committing to egress.

6. EXIT AND DESCEND: Carefully exit the egress opening, maintaining three points of contact for as long as possible. Place your dominant hand on the brake strand below the Rescue 8 and your non-dominant hand lightly on the rope above the descender for balance.

7. CONTROL DESCENT RATE: To descend, allow the brake strand to feed slowly through your brake hand. To stop, bring the brake hand firmly back and up, locking the rope against the descender. Maintain controlled speed, avoid sudden drops, and keep your feet on the wall to fend off obstacles throughout the descent.

8. RETIRE ALL COMPONENTS AFTER USE: Upon reaching safe ground, remove all components from service immediately. Any rope, carabiner, or descender subjected to a live operational descent must be retired and replaced before the kit is returned to a readiness state.

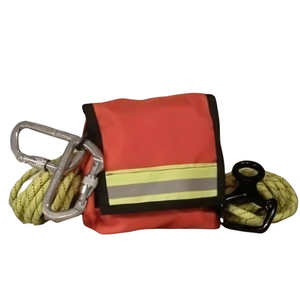

EVAC Systems Personal Escape Kit – Model I (Ultra-Compact 40')
