Quick Overview

The EVAC Systems Res-Q Hardware Rope Bag is a self-contained, rapidly deployable rope bag used by trained rescue technicians and riggers to transport and deploy a complete, pre-configured rope rescue system in technical rescue, SAR, tactical, and industrial environments.

The bag is engineered around a dual-compartment architecture that separates the lifeline from all rigging hardware. The main rope compartment houses the static rescue rope, secured by a drawstring closure that allows controlled payout during deployment. The front hardware pocket provides externally accessed, sequenced staging for carabiners, pulleys, descent control devices, prusiks, and anchor straps, all secured by internal Velcro loops and tie-downs. This segregation is not a convenience feature; it is a protection protocol that prevents unseen sheath and core damage to the lifeline during transport.

The bag's chassis is constructed from 1,000 Denier Cordura nylon, providing field-ready resistance to abrasion, tearing, and puncture across rock faces, urban debris, and industrial structures. The operator portability system includes dual padded backpack straps for hands-free movement through difficult terrain and a reinforced top grab handle for short-distance transfer. Pre-planned systems supported include the 3:1 mechanical advantage Z-Rig, pre-built lowering systems, and primary rigging kits for confined space tripod operations.

Sustained readiness requires post-mission inspection of all seams, zippers, buckles, and straps, followed by air-dry cleaning with fresh water and mild non-detergent soap. An exterior accountability tag logging rope type, length, and in-service date is required to confirm system readiness across the team. The bag is a container only and is not a life-safety rated component; no part of an active rescue system should ever be attached to its fabric, straps, or handles.

---

Field Application Steps

1. EQUIPMENT INSPECTION: Conduct a full visual and functional inspection of all life-safety components including the rope, carabiners, pulleys, prusiks, and webbing per agency policy. Confirm every component is in-service, undamaged, and appropriate for the intended system build before loading.

2. HARDWARE RACKING: Open the front hardware pocket and systematically rack all components for the intended system, such as a 3:1 Z-Rig, onto the internal Velcro loops in logical deployment sequence. Secure the pocket zipper fully before proceeding.

3. ROPE FLAKING: Open the main compartment and flake the rescue rope in a non-binding pattern, confirming the working end is positioned for immediate access. This step is critical: improper flaking causes knots and snags under operational stress when time cannot be lost.

4. FINAL CLOSURE AND READINESS CONFIRMATION: Cinch the main compartment drawstring closure and secure all straps. Confirm the bag is configured, closed, and ready for immediate deployment before leaving the staging area.

5. TRANSPORT TO RIGGING POINT: Don the bag using both padded backpack straps for hands-free movement to the designated anchor location. Use the top grab handle for short-distance transfers or operator-to-operator handoffs as terrain requires.

6. ON-SCENE STAGING: Place the bag on a stable surface, preferably on a rope tarp, at the anchor location. Orient the bag so the hardware pocket faces you before opening any compartment.

7. RIGGING SYSTEM BUILD: Unzip the hardware pocket fully and access components in the sequence they were racked. Build the anchor and mechanical advantage system without dumping contents on the ground, maintaining a clean, accountable work area.

8. ROPE DEPLOYMENT: Once the hardware system is built and set, open the main compartment drawstring. Feed the working end through the system and pay out rope as needed directly from the bag to maintain a controlled, managed rope path throughout the operation.

9. POST-MISSION INSPECTION AND SUSTAINMENT: After each use, empty the bag completely and inspect all seams, stitching, zippers, buckles, and backpack straps for tears, fraying, abrasion, cracks, or deformation. Remove all dirt and debris from the interior before cleaning and repacking.

10. CLEANING AND STORAGE: Clean with a stiff brush and fresh water, using mild non-detergent soap for heavy soil. Rinse thoroughly, air dry completely, and store in a cool, dry, dark location away from UV light, extreme temperatures, and chemical contaminants.

11. SYSTEM ACCOUNTABILITY LOGGING: Affix an exterior tag or label to the bag detailing exact contents, including rope type, length, and date placed in service. This log is required for team-wide readiness accountability and must be updated any time contents are changed or components are retired.

---

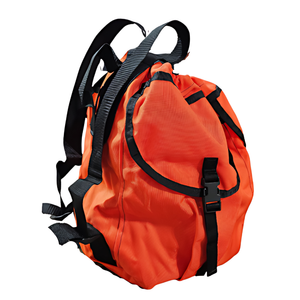

Equip Yourself: EVAC Systems Res-Q Hardware Rope Bag – Complete Rigging Organizer
