EVAC Systems Rescue Throw Bag Kit: Field Manual and SOP

How to Guides - Product Field Manual SOPs - Luminary Global

EVAC Systems Rescue Throw Bag Kit: Field Manual and SOP

Category: Climbing Rope Bags

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A rescue throw bag is a rapid-deployment water rescue device used by trained first responders and emergency operators to establish a lifeline between a shore-based rescuer and a conscious, waterborne subject in moving or static water.

The EVAC Systems EP400B Throw Bag Kit is available in three operational configurations: 50 ft for close-quarters deployment from kayaks or narrow channels, 75 ft as the standard configuration for riverbank and pier rescues, and 100 ft for extended-range operations on wide rivers or open water. The lifeline is constructed from polypropylene Sterling WaterLine 3/8" rope, which provides positive buoyancy to prevent underwater entanglement. The 1000 Denier Cordura nylon bag integrates a sewn-in foam float to keep the bag on the surface as a visible, accessible target.

Correct deployment follows a defined protocol: secure the rescuer's end loop in the non-throwing hand, flake 3 to 5 feet of rope out of the bag, establish verbal communication with the subject, then execute an underhand pendulum throw aimed just beyond and slightly downstream of the victim. The current will pendulum the rope into the subject's path. After contact, the rescuer braces and allows the current to belly the rope before pulling hand-over-hand using legs and core.

This system is designed exclusively for surface water rescue of conscious, cooperative subjects. It is not rated for vertical hauling, fall arrest, or recovery of unresponsive victims. The rescuer's end loop must never be attached directly to the rescuer's body, as moving water forces can pull an attached rescuer into the current with no means of release.

---

Field Application Steps

1. SCENE ASSESSMENT: Confirm stable footing at the deployment position, identify a safe downstream retrieval zone, and visually clear the water for hazards including strainers and submerged debris.

2. READY THE BAG: Remove the throw bag from storage and open the top closure to prepare for deployment.

3. SECURE THE RESCUER'S END: Grip the looped end of the rope firmly in your non-throwing hand or place your foot on it. Never wrap the rope around any part of your body.

4. FLAKE OUT ROPE: Pull approximately 3 to 5 feet of rope out of the bag before throwing to ensure a smooth, unimpeded start to payout on release.

5. ESTABLISH COMMUNICATION: Make eye contact with the subject and yell clearly: "ROPE! ROPE! ROPE!" to alert them and prepare them to receive the line.

6. POSITION AND AIM: Stand slightly upstream of the victim. Aim the throw just beyond the subject and slightly downstream so the current will pendulum the rope into their path.

7. EXECUTE THE THROW: Use an underhand pendulum motion, swinging back then forward and releasing toward the target. Avoid overhand throws, which reduce both accuracy and distance.

8. MANAGE THE ROPE POST-LANDING: Once the bag lands, brace your stance. Do not pull immediately. Allow the current to create a belly in the rope and swing the line into the victim's hands.

9. COACH THE VICTIM: Instruct the subject to grab the rope or bag, roll onto their back, and point feet downstream. If they have the bag, direct them to pull it to their chest.

10. RETRIEVE THE SUBJECT: Use a stable, braced position and pull hand-over-hand using legs and core. In strong current, execute a ferry angle or pendulum swing to guide the subject into a downstream eddy.

11. REPACK FOR REDEPLOYMENT: If the first throw is missed, pull the rope back quickly. Hold the bag open with one hand and rapidly stuff the rope back in with the other. Do not coil. Stuffing ensures tangle-free payout on the next throw.

12. CONFIRM LOOP ACCESSIBILITY: Before redeployment, ensure the rescuer's end loop remains outside the bag and is accessible for immediate re-grip.

---

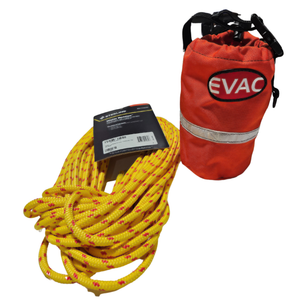

Equip Yourself: EVAC Systems Basic Throw Bag Kit – NFPA Rope & Bag (50-100ft)
