EVAC Systems Standard Rope Bag | Field Manual SOP

Category: Climbing Rope Bags

Difficulty Level: Tier 3: Field Competency Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A rope bag is a durable, field-ready container used by fire-rescue, search and rescue, tactical law enforcement, and rope access operators to protect, transport, and rapidly deploy technical rope systems in high-angle, swiftwater, and urban environments.

The EVAC Systems Standard Rope Bag is constructed from 1000 Denier Cordura nylon, providing abrasion resistance against concrete, rock, and steel while offering water-resistant protection during transport and staging. Its wide-mouth opening facilitates efficient flaking and smooth rope payout, minimizing the risk of kinking, twisting, or hockling during deployment. A drawstring closure with a cord lock enables one-handed operation, which is critical when operators are managing multiple tasks under time pressure. The color-coding system across six available colors enables immediate visual identification of rope type and role, reducing the probability of line selection errors during complex multi-line operations.

Correct loading protocol is the single most important factor in deployment readiness. The rope must be flaked into the bag layer by layer, not coiled. Coiling introduces twists that become knots upon rapid deployment, a failure mode with potentially catastrophic consequences in life-safety scenarios. The terminal end must be secured to the internal tie-in loop using a figure-eight follow-through, and the bag must be marked with the rope's type, length, diameter, and in-service date before staging.

The bag itself is not a rated load-bearing component and must never be used as an anchor point or integrated directly into a rigging system. Inspection is required before each loading and after each use, with a detailed inspection every six months regardless of activity. Bags with significant structural damage must be removed from service and destroyed to prevent accidental reuse.

---

Field Application Steps

1. SELECT CORRECT BAG SIZE: Match the bag to the rope using the manufacturer's capacity chart. Under-sizing compresses the rope; over-sizing allows tangling during deployment.

2. INSPECT THE BAG: Visually and physically examine all seams, stitching, Cordura fabric, carry handles, and the drawstring cord lock before loading. Remove the bag from service immediately if any component is compromised.

3. ANCHOR THE TERMINAL END: Secure the terminal (bottom) end of the rope to the internal tie-in loop using a figure-eight follow-through or other appropriate knot. This prevents the rope from passing completely through a system during deployment.

4. FLAKE THE ROPE INTO THE BAG: Feed the rope into the bag and allow it to stack naturally, layer by layer. Do not coil the rope. Coiling introduces twists that become knots and tangles upon rapid deployment.

5. SECURE AND MARK THE BAG: Cinch the drawstring fully and engage the cord lock. Mark the exterior of the bag clearly with the rope's type, length, diameter, and in-service date.

6. TRANSPORT AND POSITION AT DEPLOYMENT POINT: Carry the bag to the deployment site and position it upright and stable where it cannot be kicked or knocked over during the operation.

7. VERIFY CORRECT ROPE SELECTION: Confirm the correct rope by referencing the bag's color coding and external markings before opening. Do not assume; verify.

8. OPEN THE BAG AND PREPARE FOR DEPLOYMENT: Release the cord lock and open the drawstring closure fully to allow unobstructed rope payout.

9. CONNECT THE WORKING END TO THE SYSTEM: Remove the working (top) end of the rope from the bag and attach it to the system as required, such as tying into an anchor or attaching to a rappel device.

10. DEPLOY THE ROPE: Throw or lower the bag to deploy. The rope will pay out smoothly from the top as the bag descends. For controlled lowers, manually feed the rope from the positioned bag without throwing.

---

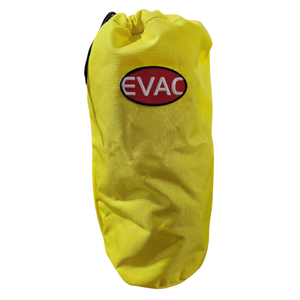

Equip Yourself: EVAC Systems Standard Rope Bag – 1000D Cordura Rescue Rope Carrier

Ensure you have the right gear before an emergency strikes.

View Product
