Field Guide: Mayday Triage Tarp System for Mass Casualty Incidents

Category: Emergency Tools & Kits

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Luminary Global Mayday Triage Tarp System is a field-deployable mass casualty incident scene management kit used by trained emergency responders to establish color-coded Casualty Collection Points that organize patient flow and support Incident Command System operations.

The system consists of four 16-foot by 20-foot tarps in red, yellow, green, and black, corresponding directly to S.T.A.R.T. and SALT triage classifications. Each tarp creates a physically demarcated zone for a distinct patient category: Immediate, Delayed, Minor, and Deceased. Four matching rolls of adhesive triage tape reinforce visual organization by defining movement lanes and marking ingress and egress points. A triage flow chart provides the Triage Unit Leader with a quick-reference cognitive aid to standardize categorization decisions across all triage officers on scene.

Deployment follows a sequential three-phase protocol. Site selection requires a secure area uphill and upwind of all hazards, with a minimum operational footprint of approximately 50 by 60 feet and designated separate ingress and egress points. System deployment positions the red tarp closest to the egress point for rapid transport loading, yellow adjacent to red, green furthest from the hot zone, and black in a separate discreet location. Activation assigns a Triage Area Manager to each active tarp, responsible for re-triage, interventions, and patient count reporting.

This system is a scene management and patient flow control tool. It does not include medical supplies, triage tags, PPE, or patient litters, and it does not confer medical authority. All triage and treatment actions must be performed by personnel operating within their established scope of practice and according to local agency protocols.

Field Application Steps

1. CONDUCT INITIAL INVENTORY: Upon receipt, unfold each of the four tarps completely and inspect for manufacturing defects, holes, or tears. Confirm all four tape rolls are intact and that the triage flow chart is present and legible.

2. SELECT AND SURVEY THE SITE: Identify a secure area that is uphill and upwind of all hazards including fire, smoke, and hazmat. The minimum operational footprint required is approximately 50 feet by 60 feet.

3. DESIGNATE INGRESS AND EGRESS POINTS: Establish a single ingress point for patients arriving from the hot zone and a separate egress point leading directly to the transportation corridor where ambulances are staged. Mark both points clearly with colored adhesive tape.

4. DEPLOY TARPS IN SEQUENCE: Position the red tarp closest to the egress point for rapid transport loading. Place the yellow tarp adjacent to the red tarp, the green tarp furthest from the hot zone as an ambulatory holding area, and the black tarp in a separate, discreet location to minimize psychological impact on other patients and personnel.

5. SECURE TARPS AGAINST ENVIRONMENTAL CONDITIONS: In windy conditions, anchor all four tarp corners using equipment bags, sandbags, or adhesive tape. A 16-foot by 20-foot tarp presents significant sail area when unsecured and can become a projectile hazard.

6. MARK MOVEMENT LANES: Use the color-matched adhesive tape rolls to define patient movement pathways between tarps and to reinforce the boundaries of each triage zone. Tape is not a primary patient triage tag and must not be used as one.

7. ACTIVATE THE CASUALTY COLLECTION POINT: Appoint a Triage Area Manager for each active colored tarp, red, yellow, and green, with each manager responsible for re-triage, interventions, and reporting patient counts to the Triage Unit Leader.

8. MANAGE PATIENT FLOW: Direct each patient to the corresponding tarp upon completion of primary triage tagging using agency-issued triage tags such as MET-TAG, sourced separately. The Triage Unit Leader retains the flow chart to resolve categorization ambiguities and ensure protocol uniformity across all triage officers.

9. EXECUTE POST-DEPLOYMENT SUSTAINMENT: After the incident, decontaminate all non-disposable components per agency bloodborne pathogen and infection control policies. Inspect each tarp for new rips or punctures, immediately replace used tape rolls, discard any components that cannot be decontaminated, and repack the kit to 100 percent mission-ready status. Log all deployment and sustainment actions in the appropriate equipment maintenance records.

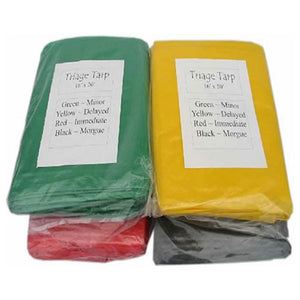

Equip Yourself: Mayday Triage Tarps Set of 4 (16 x 20)
