Quick Overview

The 9mm x 50' Nylon Braided Utility Rope is a general-purpose utility cordage designed for tensioning, lashing, securing, and hoisting of equipment and materials in field, vehicular, and domestic environments by operators requiring reliable, lightweight cordage.

The rope's core-and-sheath construction provides two distinct capability layers. The 9mm braided nylon sheath serves as the primary strength component, offering moderate abrasion resistance and dynamic stretch that absorbs shock loads during cargo transit or on wind-loaded shelter systems. Four inner nylon core strands housed within the sheath function as a cordage expansion reserve, effectively converting 50 feet of utility rope into up to 250 total feet of mixed-use cordage for light-duty applications including guylines, gear ties, and field repair.

Intended deployment scenarios include shelter ridgeline construction, cargo and equipment security on vehicle racks or watercraft, gear hoisting such as bear bags up to 30 pounds, and field expediency tasks. This rope is classified for NON-life-safety applications only. It carries no published working load limit or tensile strength rating, and any knot tied in the rope reduces its breaking strength by 50 percent or more depending on knot type.

Readiness protocol requires visual and tactile inspection before each use and after any significant loading event. Operators should check the full sheath length for cuts, fraying, melting, or discoloration, and run the rope through gloved hands to detect internal core damage. Retirement from service is mandatory upon sheath damage exposing inner cores, shock load absorption, glazing, or confirmed chemical contamination.

Field Application Steps

1. PRE-DEPLOYMENT INSPECTION: Uncoil the 50-foot rope and visually inspect the full sheath length for cuts, nicks, abrasions, fraying, melting, or discoloration. Run the rope through gloved hands and feel for stiff sections, soft spots, or diameter changes that indicate internal core damage before committing the rope to any load.

2. SITE ASSESSMENT AND ANCHOR SELECTION: Identify two suitable anchor trees spaced to match the tarp's length and positioned to provide the desired ridgeline height. Clear the ground beneath and around the site of sharp debris that could damage the rope or the shelter floor.

3. RIDGELINE ATTACHMENT: Secure one end of the 9mm rope to the first anchor tree at the desired height using a Bowline knot. Extend the rope to the second anchor tree and apply tension using a Taut-Line Hitch or Trucker's Hitch, then drape the tarp over the tensioned ridgeline.

4. CORDAGE EXPANSION FOR GUYLINES: Using a sharp tool, cut one end of the remaining rope tail cleanly. Slide the outer sheath back 6 to 12 inches to expose the four inner core strands. Extract and cut the required strand lengths from the inner cores only, not the sheath, then use the extracted strands as guylines from tarp grommets to ground stakes.

5. GEAR HOIST SITE SELECTION: Identify a sturdy overhead limb at least 15 feet high that extends a minimum of 10 feet from the trunk. This positioning keeps the suspended load inaccessible to ground-level animals and clear of the trunk.

6. BEAR BAG HOIST AND SECURING: Throw the free end of the 9mm rope over the selected limb and secure the food pack to one end. Hoist the pack to at least 12 feet off the ground and 6 feet below the limb, then secure the running end to the tree trunk well out of reach of animals.

7. POST-USE MAINTENANCE AND STORAGE: Wash the rope with cold water and mild, non-detergent soap, rinse thoroughly, and air dry completely in loose coils out of direct sunlight using no heat source. Store in a cool, dark, dry location away from UV radiation, chemicals, and electrical motors that produce ozone.

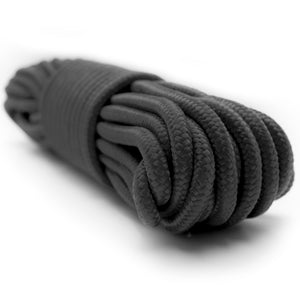

Equip Yourself: 9mm x 50' Nylon Braided Utility Rope – Multi-Purpose Camping Cord
