Field Manual: R&B Extra Large Hydrant Bag (Model 439YL) SOP

Category: Work Safety Protective Gear

Difficulty Level: Tier 3: Field Competency Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The R&B Fabrications Model 439YL Extra Large Hydrant Bag is a dedicated hose-mounted tool and appliance carrier used by engine company personnel to transport large-diameter hose appliances and hydrant tools directly to the water source during LDH supply operations.

Standard hydrant tool bags lack the internal volume to accommodate modern LDH appliances such as 5-inch Storz adapters, Humat valves, gate valves, and heavy-duty hydrant wrench and spanner combinations. The 439YL resolves this logistical gap by keeping the complete tool complement married to the hydrant end of the supply line throughout deployment. This eliminates operational delays caused by missing tools at the plug, a failure mode that directly impacts fire attack timelines.

The bag is constructed from 22 oz. vinyl-coated nylon, providing professional-grade abrasion and water resistance across aggressive hose drag conditions. A full-length hook-and-loop flap serves as the primary tool retention system, preventing ejection of high-consequence items during rapid hose lays and obstacle maneuvering. Dual heavy-duty Velcro webbing straps function as the sole mounting interface to the LDH, with a redundant dual-strap configuration that distributes load and resists the torsional forces generated during deployment.

Field readiness for this system depends on correct pre-load configuration, verified strap tension, and disciplined post-connection tool accountability. High-visibility yellow vinyl and a red reflective strip support operator safety at the hydrant position during both daytime and low-light roadway operations. The bag is stored in fully loaded, hose-mounted configuration on the apparatus to ensure immediate mission readiness at dispatch.

---

Field Application Steps

1. PRE-LOAD THE BAG DURING DAILY APPARATUS CHECK: Place one 5-inch Storz-to-thread adapter at the bottom of the bag as the heaviest item, then add one heavy-duty hydrant wrench and spanner combination tool, distributing weight as evenly as possible. Include one rubber mallet if your department's protocol calls for it.

2. SECURE THE CLOSURE FLAP: Press the full-length hook-and-loop flap firmly closed, running the full width of the bag to ensure complete engagement along its entire length. An incompletely secured flap will not retain heavy appliances during a hose drag.

3. POSITION THE BAG ON THE HYDRANT END OF THE SUPPLY LINE: Identify the female coupling at the hydrant end of the LDH. Place the bag longitudinally along the hose immediately behind that coupling.

4. ATTACH AND TENSION THE MOUNTING STRAPS: Feed both webbing straps under the hose and back through their respective keepers. Cinch both straps to maximum tension, eliminating all play and rotational movement around the hose body.

5. VERIFY MOUNTING INTEGRITY BEFORE DEPLOYMENT: Physically attempt to twist and shift the bag around the hose. If any movement is detected, re-tighten immediately. Do not deploy the line until zero movement is confirmed.

6. DRAG THE LDH TO THE HYDRANT: The firefighter assigned to the hydrant position drags the supply line to the plug with the tool bag traveling on the hose. No separate tool carry is required.

7. STAGE THE HOSE AND BAG AT THE HYDRANT WORK AREA: Place the hose and attached bag on the ground in the primary work area, oriented for efficient flap access and tool retrieval.

8. RETRIEVE TOOLS IN OPERATIONAL SEQUENCE: Open the hook-and-loop flap and retrieve the hydrant wrench first to remove port caps and check the operating stem. Follow with the Storz adapter and spanners to complete the LDH connection.

9. RETURN ALL TOOLS AND SECURE THE FLAP AFTER CONNECTION: Once the hydrant is charged, return every item from the standard loadout to the bag. Account for all tools before closing, then secure the top flap immediately to prevent tool loss and mitigate trip hazards in the hydrant work area.

10. PERFORM POST-INCIDENT SUSTAINMENT: After the incident, clean the bag exterior with department-approved soap and water. Allow the bag to air dry completely before reloading tools, as storing the bag while wet promotes corrosion of stowed metal appliances.

11. RETURN TO OPERATIONAL STORAGE CONFIGURATION: Reload the bag with its designated tool complement, re-attach it to the primary LDH supply line on the apparatus, and verify strap tension. The bag must be stored fully loaded and hose-mounted to maintain mission readiness for the next dispatch.

---

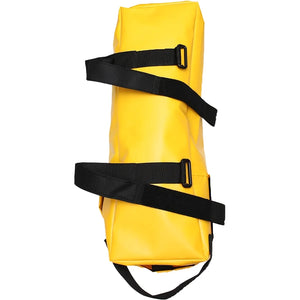

R&B Extra Large Hydrant Bag – 27” Vinyl Tool Carrier for LDH

Equip Yourself: R&B Extra Large Hydrant Bag – 27” Vinyl Tool Carrier for LDH

Ensure you have the right gear before an emergency strikes.

View Product
LEGAL DISCLAIMER & SAFETY WARNING:
The information provided in this Luminary Global Field Manual is strictly for educational and informational purposes. It is not a substitute for formal medical, tactical, or professional training. In the event of a medical emergency, immediately seek professional help or contact emergency services. Luminary Global assumes no liability for the misuse of equipment, improper application of techniques, or any injuries/damages resulting from the use of these guidelines. Always rely on your official agency training, local laws, and established protocols during a crisis.
