Field Manual: R&B Fabrications Universal Leather Radio Case SOP

Category: Radio Carrying Cases

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The R&B Fabrications Universal Leather Radio Case (Model BL-5487-RC-1) is a field-grade protective carrier designed to secure a portable radio to a firefighter or tactical operator during structural firefighting, technical rescue, and high-demand operational environments.

The case is constructed from top-grain leather in a 5-inch tall bucket configuration, providing impact absorption, abrasion resistance, and temporary thermal protection that nylon-based alternatives cannot match under fire conditions. The height is engineered to protect the radio's main housing and battery while keeping upper controls, including the PTT button and channel selector, accessible during active operations. An adjustable retention strap locks the radio into the case and prevents ejection during running, climbing, or inversion events.

System integrity depends on correct integration with two additional components: a load-bearing radio strap connected via steel D-rings, and an anti-sway strap anchored to the operator's turnout pants or duty belt. The steel D-rings are the sole load-bearing attachment points for the entire system. Failure of any single component, including frayed stitching or worn hardware, constitutes failure of the complete carrying system.

The case is heat-resistant, not fireproof, and offers moisture resistance without being waterproof. Following chemical exposure, the case must be removed from service for decontamination and inspection. Pre-deployment inspection of stitching, leather condition, hardware, and the retention strap is required daily, every shift, to maintain full operational readiness.

Field Application Steps

1. RADIO INSERTION AND SEATING: Inspect the interior of the leather bucket for debris before loading. Slide the radio fully into the case and confirm it is seated at the bottom with no gap, as an improperly seated radio sits top-heavy and is less secure.

2. RETENTION STRAP ADJUSTMENT: Route the retention strap over the top of the radio, positioning it between the antenna and the channel selector. Tighten the strap until there is zero vertical play, then test by attempting to pull the radio upward out of the case and re-tighten if any movement is detected.

3. RADIO STRAP INTEGRATION: Clip one trigger snap to each steel D-ring on the case. Pull firmly on the radio strap to confirm both snaps are fully closed and properly engaged, then visually inspect each snap gate for correct seating.

4. ANTI-SWAY STRAP INTEGRATION: Attach the anti-sway strap from the lower D-ring to your turnout pants or duty belt. Adjust the strap length to hold the case firmly against your hip or torso without restricting movement or blocking access to the radio.

5. FINAL FUNCTION CHECK: With the complete system worn and loaded, confirm unobstructed access to the PTT button, speaker mic jack, and channel and volume knobs. Perform dynamic movements including bending at the waist and twisting the torso to verify the system holds secure and produces minimal swing.

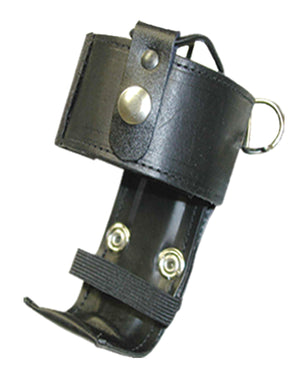

R&B Leather Radio Case – Universal Fit Holder with D-Rings
