Field Manual: R&B Universal SCBA Mask Bag (4-Point Grommet Mount)

Category: Gas Mask & Respirator Accessories

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

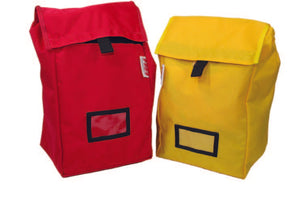

The R&B Universal SCBA Mask Bag (Model 425) is a fixed-mount, four-point grommet storage system designed to secure a single SCBA mask inside fire apparatus, utility vehicles, or industrial safety stations where rapid deployment and mask protection are operational requirements.

The Model 425 addresses a direct readiness failure in single-point hanging bag systems: uncontrolled swing during vehicle movement causes impact damage to the facepiece and creates snag hazards for personnel moving through confined cab spaces. The four-point brass grommet mounting system eliminates that movement entirely, keeping the mask stationary against any vertical or horizontal surface. The Cordura nylon body provides abrasion-resistant, mildew-resistant protection against the dirt and moisture common in apparatus environments.

The bag's 14-inch by 9-inch by 6-inch main compartment houses one standard-issue SCBA mask with regulator attached, without compressing the facepiece seal, distorting the lens, or degrading any sensitive components. The full-width hook-and-loop flap closure maintains a positive seal against contaminants during transit while allowing single-handed access under gloves, a critical capability when seconds matter at the point of deployment. Mounting hardware is not included and must be selected by the installer based on substrate type.

Operators responsible for apparatus upfitting must assess mounting surface integrity, orientation relative to crew height, and potential snag clearance before finalizing installation. The bag is a storage solution only and is not rated for carry, transport, or fire exposure. Cordura nylon will melt and burn under direct flame or high heat and must not be positioned in any location where thermal exposure is a realistic scenario.

Field Application Steps

1. MOUNTING SITE ASSESSMENT: Hold the empty bag against the candidate surface and confirm it will not impede door operation, seat movement, or personnel egress. Check substrate depth to verify that fasteners will not penetrate to the vehicle exterior or contact wiring behind the panel.

2. ORIENTATION SELECTION: If mounting at or below waist level, orient the bag flap-up so gravity holds the flap closed during transit. If mounting at or above chest level, orient flap-down so gravity assists opening for faster deployment.

3. HARDWARE SELECTION: Select fasteners appropriate to the substrate: machine screws with washers and locking nuts for metal panels, wood screws or lag bolts with washers for wood or composite surfaces, and heavy-duty UV-resistant zip ties or coated steel wire for cage or mesh surfaces. Do not use undersized or low-grade fasteners, as inadequate hardware is the primary cause of mount failure.

4. MARKING AND PILOT HOLES: With the bag positioned correctly, mark the center of all four grommet hole locations onto the mounting surface. Remove the bag and drill pilot holes where required by the substrate material.

5. INITIAL FASTENER INSTALLATION: Reposition the bag over the marked points and install the first fastener without fully tightening it. This allows positional adjustment before committing the mount.

6. FULL INSTALLATION AND PULL-TEST: Install the remaining three fasteners, confirming the bag lies flat and is not under tension across its backing. Fully tighten all four fasteners in sequence, then perform a firm pull-test on the bag body to verify rigid securement at all four corners.

7. SCBA MASK STOWAGE: Inspect the mask for cleanliness and operational readiness before placing it in the bag. Orient the mask with the lens facing forward, away from the mounting hardware, to prevent lens scratching.

8. FACEPIECE AND CLOSURE CHECK: Confirm the facepiece seal is not folded, creased, or compressed inside the compartment. Press the hook-and-loop flap closure firmly along its entire width to ensure a complete and secure seal.
