Field Manual: Rothco 2000 Lumen Tactical Task Light SOP

Category: Handheld Torches

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco 2000 Lumen Rechargeable LED Tactical Task Light is a multi-function illumination and power platform used by Fire/Rescue, Law Enforcement, EMS, and Search and Rescue operators who require high-intensity search lighting, hands-free task illumination, emergency signaling, and backup power from a single field-ready unit.

The flashlight operates across four functional roles: primary search and navigation via a 2000-lumen 160XHP main LED with a zoomable head assembly, secondary area lighting via a COB side lamp with white and red modes, tertiary emergency power delivery via a USB-A output port, and contingency signaling via Flare and SOS modes. The zoomable head transitions between flood and spotlight configurations, giving the operator direct control over beam geometry based on the environment. Red light COB modes preserve night vision during map reading, surveillance, and light-discipline operations.

Power capability is built around a primary 18650 lithium-ion rechargeable battery that provides access to all features and maximum brightness. A 3-AAA battery adapter serves as a redundant backup power source when the 18650 is depleted and no recharge capability is available, though operators should expect significantly reduced brightness and runtime on AAA power. The unit charges via USB-C input and can output power to low-draw devices such as mobile phones and GPS units via USB-A, though activating the power bank function will reduce the flashlight's own operational runtime.

The chassis is machined aluminum with an IPX4 water resistance rating, providing protection against rain and splash from any direction. The USB port cover must remain fully sealed to maintain that rating, as submersion will cause catastrophic failure. A paracord wrist strap provides retention during dynamic movement and can be removed when it presents a snag hazard.

Field Application Steps

1. POWER VERIFICATION: Press the power button fully once to activate the unit and check the LED charge indicators near the button. Confirm the 18650 battery is at or near full charge before deployment.

2. REDUNDANCY STAGING: Confirm the 3-AAA battery adapter and a full set of fresh AAA batteries are staged in your kit as a backup power source. Do not enter an operation without this contingency available.

3. RETENTION SETUP: Secure the paracord wrist strap around your non-dominant hand before entering any dynamic operational environment. Remove the strap only if it presents a confirmed snag hazard in the specific environment.

4. MAIN LED ACTIVATION AND MODE SELECTION: Depress the power button fully to activate the main LED. The unit defaults to High mode. Use half-presses to cycle through High, Mid, and Low output levels based on room size and battery conservation requirements.

5. BEAM GEOMETRY ADJUSTMENT: Pull the head assembly backward toward the body to open the flood beam for room entry and close-quarters searching. Push the head forward away from the body to narrow to a spot beam for long-distance identification, hallway penetration, or working through smoke.

6. COB SIDE LAMP ACTIVATION: From any mode or from off, rapidly double-press the power button to switch to the COB side lamp. Place the flashlight on a stable, flat surface with the COB panel oriented toward the work area.

7. COB MODE SELECTION: Half-press the power button to cycle through the four COB modes: White High, White Low, Red Solid, and Red Flare. Use White for patient care and equipment tasks. Use Red Solid when night vision preservation is required. Use Red Flare as a passive high-visibility marker for breach points, casualty locations, or hazard areas.

8. EMERGENCY SIGNALING: From the main LED mode cycle, continue half-pressing past Low to access Flare (strobe) for disorientation or attention attraction, and SOS for universally recognized distress signaling to rescue assets.

9. EMERGENCY POWER BANK DEPLOYMENT: Peel back the rubberized USB port cover and connect a critical device to the USB-A output port. Monitor the flashlight's charge indicators throughout, as this function will significantly reduce the unit's remaining illumination runtime.

10. FIELD POWER SWAP TO AAA BACKUP: Unscrew the tail cap and remove the depleted 18650 battery. Insert three AAA batteries into the adapter with correct polarity observed, insert the loaded adapter into the barrel, and secure the tail cap fully. Expect reduced brightness and runtime compared to 18650 operation.

11. POST-OPERATION INSPECTION AND STORAGE: Wipe down the body with a damp cloth and clean the lens with a soft cloth. Confirm the USB port cover seals tightly, inspect the tail cap threads for debris, and recharge the 18650 via USB-C input before returning the unit to ready status. For storage beyond 30 days, charge the 18650 to 50 to 70 percent, remove it from the flashlight, and store both in a cool, dry location. Never store the unit with AAA batteries installed due to leak and corrosion risk.

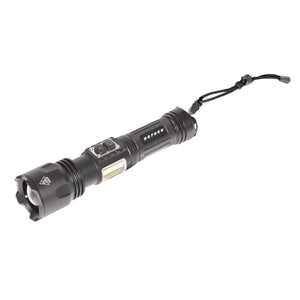

Equip Yourself: Rothco Rechargeable LED Tactical Task Light with Zoom – 2000 Lumens
