Quick Overview

The Rothco 3W Cree LED Flashlight is a compact, aluminum-bodied illumination tool producing 150 lumens across three operator-selectable modes, designed for everyday carry, task lighting, area illumination, and emergency signaling in low-light and no-light field conditions.

This flashlight is built around a 3-watt Cree LED emitter housed in an impact-resistant aluminum alloy chassis, powered by three AAA batteries accessed through the tail cap. The adjustable zoom ring shifts the beam between wide flood and narrow spotlight, giving the operator direct control over coverage versus reach. A top-mounted rubber-capped push-button switch cycles through High, Low, and Strobe modes with partial presses, and activates or deactivates the unit on a full press. The integrated metal pocket clip and wrist lanyard provide two independent retention options for carry and field deployment.

Operational capability is rated for tasks within approximately 50 yards on spot focus, making this light appropriate for equipment inspection, close-quarters navigation, medical assessment, and team signaling. The unit is water-resistant and can withstand splashes and light rain, but carries no IP rating and is not rated for submersion. Extended use on High mode will generate heat at the head assembly, which is normal thermal output from the LED heat sink.

Long-term readiness requires alkaline batteries to be removed before storage exceeding 30 days to prevent leakage and contact corrosion. Pre-deployment protocol includes a battery check, tail cap inspection, and a full mode cycle to confirm operational status. The recommended field loadout is one flashlight with three batteries loaded and three spare AAA batteries stored in a waterproof container.

Field Application Steps

1. CONFIRM POWER AND INSPECT BATTERIES: Unscrew the tail cap and visually inspect the battery compartment for corrosion or residue. Insert three fresh AAA batteries with positive terminals oriented toward the head, then tightly screw the tail cap back onto the body to ensure electrical contact and water resistance.

2. CONDUCT FUNCTION CHECK: Press the top-mounted push-button switch fully to activate the unit. Use partial presses to cycle through all three modes, confirming High, Low, and Strobe each activate in sequence before deployment.

3. SECURE FOR CARRY: Attach the wrist lanyard through the tail cap loop or engage the integrated metal pocket clip to a pocket, belt, or webbing. Select the retention method appropriate to the operational environment and tempo.

4. SET ZOOM FOR INITIAL AREA SCAN: Activate the flashlight and rotate the zoom ring to the widest flood setting. Use the broad beam to scan the operational area, identify hazards, and locate the target zone safely.

5. TRANSITION TO SPOT BEAM FOR TASK ILLUMINATION: Adjust the zoom ring toward the tightest spotlight setting and direct the concentrated 150-lumen beam into the specific work area, gear case, or inspection point. Narrow beam focus reduces glare and improves detail visibility at close quarters.

6. SELECT LOW MODE FOR EXTENDED INSPECTION: Cycle to Low mode using a partial press when conducting prolonged close-range tasks. Low mode conserves battery runtime while maintaining sufficient illumination for equipment inspection or medical assessment.

7. DEPLOY STROBE FOR SIGNALING IF REQUIRED: Cycle to Strobe mode and direct the beam toward a team member's general location to signal for attention in visually congested environments. Do not use Strobe in the presence of individuals with known photosensitive epilepsy or in non-tactical group settings.

8. CONDUCT POST-USE MAINTENANCE: Wipe down the entire unit to remove dirt, moisture, or fluids. Clean the lens and battery contacts as needed, and inspect the body, lens, switch cap, clip, and lanyard for any damage incurred during the operation.

9. PREPARE FOR STORAGE IF NOT IN ACTIVE ROTATION: If the unit will be stored for more than 30 days, remove all three AAA batteries before storing. Keep the unit in a cool, dry location to prevent corrosion of internal contacts and preserve long-term readiness.

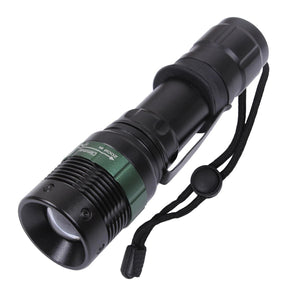

Equip Yourself: Rothco 3 Watt Cree LED Flashlight – 150 Lumen Zoomable Pocket Torch
