Written by: Valerie Ellis Lavin

Quick Overview

The Rothco 8-24x50mm Zoom Binoculars are a variable-magnification optical tool used by operators, wildlife observers, and search and rescue personnel for long-range identification, area scanning, and reconnaissance from static positions in daylight or well-lit conditions.

The optical system centers on 50mm objective lenses that gather sufficient light for a bright image at lower magnifications, paired with ruby red coated optics that reduce glare and enhance contrast in bright, sunny conditions. The zoom range spans 8x to 24x, giving the operator flexibility to conduct wide-area scanning at low power and detailed point inspection at high power. Image clarity, brightness, and stability decrease as magnification increases toward 24x, which is an inherent characteristic of zoom optics and not a defect.

Proper calibration is essential to deployment readiness. The diopter adjustment ring compensates for differences between the operator's left and right eye and only needs to be set once. After diopter calibration is complete, all focusing at any distance is accomplished solely through the center focus wheel. The hinged bridge adjusts interpupillary distance and is correctly set when the operator sees one single circular field of view.

Critical operational limits must be understood before field use. Above approximately 12x, hand tremors significantly degrade image quality, and the 15x to 24x range requires stabilization on a tripod, shooting stick, or solid surface. This unit is not waterproof or fog-proof, and a significant drop can knock internal prisms out of collimation, producing a permanent double image that requires professional repair.

Field Application Steps

1. PREPARATION: Remove the binoculars from the carrying case and attach the neck strap before handling the unit. Remove all four lens caps and store them securely before beginning optical setup.

2. MECHANICAL SETUP: Adjust the fold-down eyecups to the correct position, down if wearing glasses and up if not. Pivot the hinged bridge inward or outward until you see one single circular field of view, confirming your interpupillary distance is correctly set.

3. OPTICAL CALIBRATION: Set the zoom lever to 8x. Focus your left eye only by rotating the center focus wheel until the image is sharp. Cover the left lens and use only the diopter adjustment ring to sharpen the right eye. Do not touch the center focus wheel during diopter adjustment.

4. AREA SCANNING: With calibration complete, use 8x magnification for the widest field of view. Move the binoculars in a systematic grid pattern across the target area to detect movement or anomalies efficiently.

5. TARGET IDENTIFICATION: Once a point of interest is located, keep the binoculars centered on it and smoothly advance the zoom lever to increase magnification. Brace the binoculars against a tripod, backpack, or other solid surface when operating above 12x. Refine focus using the center focus wheel.

6. STOWAGE: Return the zoom lever to 8x before casing the unit. Replace all four lens caps and place the binoculars in the carrying case for transport or storage.

7. POST-USE LENS CLEANING: Blow off loose dust before touching any optical surface. Use a designated lens cloth in a circular motion from the center outward, with only approved optical cleaning solutions. Never use a shirt, tissue, or paper towel, as these will scratch the coated optics.

8. MOISTURE MANAGEMENT: If the unit was exposed to rain or high humidity, wipe the rubber armor dry with a damp cloth. Allow the unit to air dry completely at room temperature before returning it to the case to prevent fungus or mold growth on internal optics.

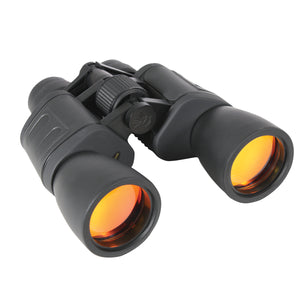

Equip Yourself: Rothco 8-24 x 50MM Zoom Binoculars | Adjustable Magnification Optics
