Field SOP: EVAC Systems Chicago Style Large Area Search Rope Bag

Category: Climbing Rope Bags

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Chicago Bag Rope Deployment System is a purpose-built rope bag used by Rapid Intervention Teams and Large Area Search operators to deploy a navigational main line in zero-visibility, structurally compromised environments where disoriented firefighters or victims must be systematically located and recovered.

The system is designed around the Chicago Style search methodology, in which a primary search line is deployed from the bag as a continuous navigational reference anchored outside the IDLH zone. Individual searchers connect to that main line using shorter tethers stored in the bag's external pockets, enabling disciplined, corridor-by-corridor sweeps without line entanglement. The bag travels with the search team leader throughout the operation, not left at the anchor, ensuring the deployment line pays out as the team advances deeper into the structure.

The bag body is constructed from 1000 Denier Cordura nylon rated for transient heat exposure up to 500 degrees Fahrenheit, protecting rope integrity during deployment. Two seat belt style quick-release buckles allow immediate jettison of the entire system if the operator becomes severely entangled and cannot self-extricate. A grommeted bottom provides drainage to prevent rope degradation and doubles as an internal anchor point for the terminal rope end.

Readiness protocol requires pre-shift inspection of the bag body, hardware actuation, rope stuffing confirmation, and verification of all ancillary tools in external pockets. Post-operation, the rope must be stuffed, never coiled, back into the main compartment to prevent deployment failure on the next activation. The fully loaded bag is stored in a dedicated apparatus compartment, protected from UV exposure, crushing, and chemical contamination.

Field Application Steps

1. SYSTEM CHECK: Confirm the main line is properly stuffed into the main compartment with the terminal end secured inside at the grommet. Verify external pockets contain all mission-essential items including search tethers, carabiners, and door wedges.

2. IDENTIFY AND ESTABLISH ANCHOR: Select a substantial, unmovable anchor point such as a structural column or apparatus located outside the IDLH zone. This anchor is the fixed origin of the team's navigational lifeline and must be bomb-proof.

3. SECURE THE MAIN LINE TO ANCHOR: Retrieve the working end of the main line from the top of the bag and tie it to the anchor using a department-approved knot such as a bowline on a bight. The bag stays with the search team leader and does not remain at the anchor.

4. DON THE BAG AND ENTER THE STRUCTURE: The search team leader dons the bag via the adjustable shoulder strap, positioning it over the SCBA cylinder for unimpeded rope deployment. The team enters the structure and the officer advances, allowing the main line to pay out from the bag with controlled tension. Excessive slack must be avoided to prevent entanglement.

5. ESTABLISH PIVOT POINT: At designated intervals along the main line, the officer stops and establishes a pivot point from which searchers will conduct their sweeps. This position anchors the search corridor and defines the tether radius for each sweep cycle.

6. DEPLOY SEARCHER TETHERS: Each searcher retrieves a personal search tether from the external pockets and connects to the main line using a Prusik hitch or high-friction carabiner. Tethers must be connected before searchers move off the main line.

7. EXECUTE SYSTEMATIC SWEEP: Searchers conduct a left- or right-hand search pattern to the full tether length, ensuring the defined corridor is completely cleared. No portion of the sweep corridor should be skipped.

8. RETURN TO MAIN LINE AND ADVANCE: Searchers return to the main line and confirm connection before the team advances further into the structure. The cycle of pivot, tether deployment, sweep, and return repeats until the area is cleared or the subject is located.

9. EGRESS ON THE MAIN LINE: To exit, the entire team follows the main search line by hand back to the anchor point. The rope provides a continuous, tactile path out of the hazard zone regardless of visibility conditions.

10. RECOVER AND REPACK THE ROPE: Post-mission, begin at one end of the rope and progressively stuff it into the main compartment. Do not coil the rope under any circumstances, as coiling introduces twists that cause deployment failure on the next activation.

11. INVENTORY, DECONTAMINATE, AND STOW: Return all ancillary tools to their designated pockets. Clean the bag interior and exterior with mild soap and water, allow it to air dry completely, and do not use bleach or harsh chemical solvents. Store the fully loaded, field-ready bag in a dedicated apparatus compartment protected from UV light, crushing damage, and chemical contamination.

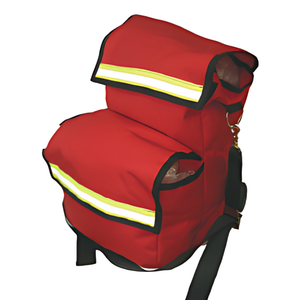

Equip Yourself: EVAC Systems Chicago Style RIT Rope Bag – Search & Rescue Operations Kit
