Field SOP: Kemp USA Scoop Stretcher Head Immobilizer Deployment

Category: Manual Stretchers & Gurneys

Difficulty Level: Tier 3: Field Competency Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Kemp USA Scoop Stretcher Head Immobilizer is a cervical spine motion restriction (CSMR) device used by trained emergency medical personnel to immobilize the head and neck of patients positioned on a scoop-style stretcher during extrication and transport.

This device is purpose-built for scenarios where a scoop stretcher is the primary transfer tool and cervical spine injury is suspected, including patients with pelvic fractures, bilateral hip or femur fractures, or conditions where a lift-and-slide maneuver is clinically preferred over log-rolling. It is designed exclusively for deployment on the Kemp USA Yellow Scoop (#10-988) and Aluminum Scoop (#10-989). Using it on any other platform, including a standard flat spineboard, will result in loss of anchorage and complete immobilization failure.

The system consists of three functional groups: the Anchorage Group (scoop-specific base plate), the Lateral Support Group (two contoured head support blocks), and the Patient Securing Group (forehead and chin straps). The base plate anchors to the rigid side poles of the stretcher frame. The head blocks cradle the occipital and parietal regions to restrict lateral and rotational movement. The forehead strap prevents flexion and extension, and the chin strap completes the immobilization by securing across the hard mandible, not the soft tissue of the neck.

Readiness for this system requires pre-shift inspection of all five components for structural integrity, strap condition, and hook-and-loop fastener serviceability. Damaged vinyl coating on any foam component creates a biohazard risk and compromises structural performance. Post-use decontamination with medical-grade disinfectants and full drying before storage are mandatory sustainment requirements.

Field Application Steps

1. ASSIGN ROLES: Designate Provider 1 to assume continuous manual in-line stabilization of the patient's head and neck. This is their sole responsibility and must not be interrupted until full immobilization is confirmed.

2. PREPARE THE STRETCHER: Have Providers 2 and 3 assemble and size-adjust the scoop stretcher to the patient per your agency's standard protocol before any device application begins.

3. SECURE THE BASE PLATE: Before the patient is positioned, place the base plate onto the head section of the scoop stretcher and route the integrated webbing straps under and around the rigid side poles, cinching tightly. Perform an action check by pulling firmly on the base plate. It must exhibit zero slippage or movement before you proceed.

4. POSITION THE PATIENT ON THE SCOOP: Following local protocols, position the two halves of the scoop stretcher under the patient and securely latch both ends.

5. TRANSFER THE HEAD TO THE BASE PLATE: On verbal command from Provider 1, gently slide the patient's head onto the centered base plate while maintaining strict manual in-line stabilization throughout the movement.

6. POSITION THE HEAD SUPPORT BLOCKS: Press both head support blocks firmly against the sides of the patient's head, eliminating any gaps between the blocks and the occipital and parietal regions, then secure each block to the hook-and-loop surface of the base plate. Confirm the head is snugly cradled with no lateral play.

7. APPLY THE FOREHEAD STRAP: Route the forehead strap across the patient's forehead just above the eyebrows and secure firmly. Do not overtighten to the point of causing pain or pressure injury.

8. APPLY THE CHIN STRAP: Apply the chin strap over the hard point of the mandible only, never over the soft tissue of the neck. Perform an action check by confirming two fingers can be slipped between the strap and the patient to ensure there is no airway compromise or circulatory impairment.

9. CONDUCT FINAL VERIFICATION: Provider 1 verbally confirms the device is secure and immobilization is complete. Only after this confirmation and a final check of all straps may manual stabilization be released. Reassess distal pulses, motor function, and sensation (PMS/CMS) immediately following application.

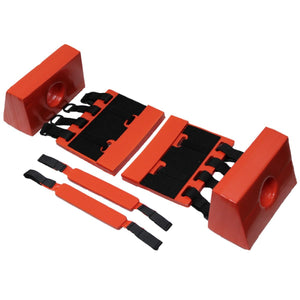

Equip Yourself: Kemp USA Scoop Stretcher Head Immobilizer – Specialized Head Block System
