Quick Overview

The Guardian Emergency Auto Kit is a field-ready roadside recovery system that equips a single vehicle operator with the essential tools, visibility equipment, and short-term sustainment supplies needed to manage common mechanical and environmental breakdowns until self-recovery or professional assistance is achieved.

The kit is organized across four operational capability categories: visibility and scene safety, vehicle self-recovery and maintenance, personal sustainment and shelter, and casualty care and administration. Core recovery tools include jumper cables for dead battery deployment, a multi-function shovel and tow rope for minor vehicle extraction from snow, mud, or sand, and a tire gauge and duct tape for post-incident assessment and temporary repairs. Visibility equipment, including a reflective road triangle, high-visibility safety vest, and auto flashlight, establishes a protective safety perimeter around the disabled vehicle and the operator.

Sustainment readiness is provided through a 400-calorie food bar, three 4-ounce water pouches, an emergency blanket rated to reflect up to 90 percent of radiated body heat, an emergency poncho, and an air-activated hand and body warmer. These items are designed to support a single operator for up to 72 hours in a static in-vehicle stranding scenario. Rations are intentionally minimal and should be conserved to last until professional assistance arrives.

This kit is a foundational stop-gap protocol, not a comprehensive mechanic's toolkit or trauma medical system. It is not rated for dynamic vehicle recovery, advanced mechanical repairs, or serious medical emergencies. Any significant injury or unresolvable mechanical failure requires immediate contact with emergency services.

Field Application Steps

1. POSITION THE VEHICLE: Move the vehicle as far onto the shoulder and away from active traffic lanes as possible. Engage the parking brake immediately upon stopping.

2. ACTIVATE HAZARD LIGHTS: If vehicle power permits, switch on the emergency flashers to alert approaching traffic. If total power loss has occurred, proceed directly to the next step.

3. DON THE SAFETY VEST: Before exiting the vehicle, put on the high-visibility safety vest. This step is non-negotiable and must be completed prior to opening the door.

4. EXIT AWAY FROM TRAFFIC: Open the door on the side away from active traffic lanes and exit with full situational awareness of your surroundings.

5. DEPLOY THE WARNING TRIANGLE: Carry the reflective road triangle along the shoulder facing oncoming traffic and place it approximately 100 feet (40 paces) behind the vehicle on a straight road. On high-speed roads or at locations with limited visibility such as hills or curves, extend placement to up to 300 feet.

6. ILLUMINATE THE WORKSPACE: Use the auto flashlight to inspect the engine bay, tires, and undercarriage. Do not rely on ambient light at any stage of assessment or repair.

7. EXECUTE DEAD BATTERY RECOVERY: If a dead battery is identified and a donor vehicle is available, connect the red jumper cable clamp to the good battery positive terminal, then to the dead battery positive terminal. Connect the black clamp to the good battery negative terminal, then to an unpainted metal ground on the disabled vehicle's engine block, away from the battery. Start the donor vehicle, wait several minutes, then attempt to start the disabled vehicle.

8. EXECUTE STUCK VEHICLE RECOVERY: If the vehicle is immobilized in snow, mud, or sand, use the multi-function shovel to clear obstructions from around the tires and undercarriage. If a tow vehicle is available, attach the tow rope to manufacturer-approved recovery points on both vehicles and direct the tow vehicle to pull slowly and steadily under constant tension. Do not use dynamic or jerking force.

9. TREAT MINOR INJURIES: If any cuts, scrapes, or abrasions occur during recovery operations, open the deluxe first aid kit and clean and dress the wound immediately. For any injury beyond minor wounds, contact emergency services without delay.

10. INITIATE STRANDED PROTOCOL IF SELF-RECOVERY FAILS: Use your personal communication device to contact law enforcement, roadside assistance, or emergency services. Provide your precise location, vehicle description, and nature of the situation.

11. RETURN TO VEHICLE AND DEPLOY SHELTER ITEMS: Once the safety perimeter is established, return to the vehicle and lock the doors. Wrap in the emergency blanket to retain body heat, activate the hand and body warmer and place it inside your jacket or pockets, and use the poncho if you must exit during precipitation.

12. CONSERVE RESOURCES AND DOCUMENT: Ration the food bar and water pouches across the full potential wait period, targeting 72-hour sustainment. Use the notepad to log all communications, events, and observations for law enforcement or rescue personnel.

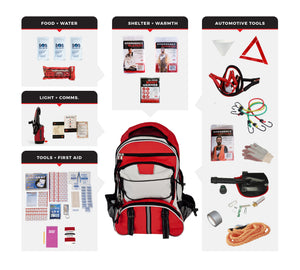

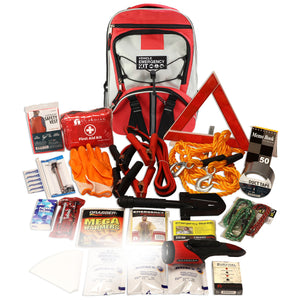

Equip Yourself: Guardian Emergency Auto Kit – Essentials Edition Vehicle Safety Pack

Ensure you have the right gear before an emergency strikes.

View Product

LEGAL DISCLAIMER & SAFETY WARNING:
The information provided in this Luminary Global Field Manual is strictly for educational and informational purposes. It is not a substitute for formal medical, tactical, or professional training. In the event of a medical emergency, immediately seek professional help or contact emergency services. Luminary Global assumes no liability for the misuse of equipment, improper application of techniques, or any injuries/damages resulting from the use of these guidelines. Always rely on your official agency training, local laws, and established protocols during a crisis.
