Katadyn Vario Field Manual: SOP for Dual-Mode Water Filtration

Category: Portable Water Filters & Purifiers

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Katadyn Vario Microfilter is a dual-mode field water filter used by operators in backcountry, emergency, and austere environments to produce microbiologically safe drinking water from non-potable freshwater sources.

The Vario's primary operational capability is its dual-mode filtration system, controlled by a Mode Selector Ring that either engages or bypasses the ceramic pre-filter disc based on source turbidity. In "Longer Life" mode, the ceramic disc intercepts silt, sand, and large particulates before water reaches the glass fiber cartridge, preserving the primary filter element's operational lifespan of up to 2,000 liters. In clear-water conditions, the ceramic stage can be bypassed for faster flow. The glass fiber cartridge at 0.2 microns achieves 99.9999% removal of bacteria and 99.9% removal of protozoan cysts.

A critical readiness limitation every operator must internalize before deployment: this filter does not remove viruses. In any environment where water may be contaminated by human or animal waste, filtered output must be subsequently treated by boiling for a minimum of one minute or by chemical purification using iodine or chlorine dioxide. The activated carbon granulate core reduces taste and odor from dissolved organics but does not address heavy metals, radiation, or high concentrations of industrial pollutants.

Field sustainment of this system depends on two discipline points. First, cross-contamination between the intake side and the clean output side is the most common failure mode and must be actively controlled through proper handling protocol. Second, the filter must never be stored or transported with water inside in sub-freezing conditions, as ice expansion fractures the internal glass fiber and ceramic elements in ways that are invisible but operationally catastrophic.

---

Field Application Steps

1. ASSESS YOUR SOURCE: Select the clearest, calmest area of the water source. Avoid stagnant zones with heavy surface scum and do not disturb bottom sediment during intake placement.

2. SET YOUR FILTRATION MODE: Evaluate source turbidity. If suspended sediment is visible, twist the Mode Selector Ring to the "Longer Life" position to engage the ceramic pre-filter disc and protect the primary glass fiber cartridge.

3. ASSEMBLE THE SYSTEM: Attach the intake hose to the intake port at the bottom of the pump housing and the output hose to the output port at the top. Confirm all connections are snug to prevent leaks and bypass of unfiltered water.

4. POSITION EQUIPMENT AND ESTABLISH CLEAN SEPARATION: Submerge the intake strainer into the source and allow the float to suspend it off the bottom sediment layer. Route the output hose into a clean collection vessel or thread the 63mm threaded base directly onto a compatible wide-mouth bottle. Ensure the intake hose, strainer, and any unfiltered drips have zero contact with the output hose or clean container.

5. PUMP TO PRODUCE OUTPUT: Place the unit on stable ground. Operate the handle with smooth, full, consistent strokes. The dual-piston mechanism produces flow on both the up and down stroke, increasing efficiency per cycle.

6. MONITOR FLOW RESISTANCE: If pumping resistance increases significantly during operation, the ceramic pre-filter disc requires field cleaning. Disassemble the filter base, remove the ceramic disc, and scrub its surface firmly with the supplied green cleaning pad under flowing water until the original white color is restored, then reassemble and continue.

7. APPLY POST-FILTRATION VIRUS TREATMENT IF REQUIRED: If the source water may be contaminated by human or animal waste, treat filtered output by boiling for a minimum of one minute or by adding a registered chemical purifier such as chlorine dioxide or iodine before consumption.

8. PURGE THE SYSTEM: Remove the intake strainer from the source. Continue pumping 5 to 10 additional strokes to expel residual unfiltered water from the housing and hoses before disassembly.

9. DISASSEMBLE AND STOW WITH DISCIPLINE: Disconnect intake and output hoses. Store the contaminated intake hose separately from the clean output hose. Place all components into the carry bag for transport.

10. EXECUTE POST-DEPLOYMENT SANITIZATION AND DRYING: After the operational period, flush the system with a solution of 1 teaspoon of bleach per gallon of clean water, allow it to sit for 15 minutes, then flush with at least 2 liters of clean water. Disassemble all components and air dry completely for 48 to 72 hours before storage to prevent mold and bacterial growth inside the housing.

---

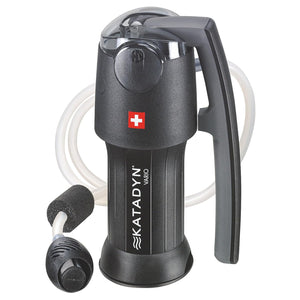

Katadyn Vario Microfilter – Dual Technology Water Filter
