Kemp USA Wheeled Litter Carrier Field Manual | Stretcher Trolley SOP

Category: Manual Stretchers & Gurneys

Difficulty Level: Tier 3: Field Competency Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Kemp USA Wheeled Litter Carrier is a high-strength aluminum accessory frame used by emergency responders to convert a multi-person manual litter carry into a two-person wheeled transport during patient evacuation over extended distances.

The carrier functions as a force multiplier in mass casualty incidents, remote site evacuations, large venue responses, and fireground warm zone operations. It attaches to standard rigid litters, including pole stretchers and Stokes basket litters, via a telescopic adjustment frame and integrated clamps. The 21-lb aluminum alloy frame is rated to 400 lbs operational load and maintains structural integrity up to 400°F, supporting deployment across paved surfaces, grass, dirt paths, and fire lines where vehicle access is restricted.

Proper deployment protocol requires a staged setup sequence: unstow and deploy the folding frame, confirm all locking mechanisms are audibly and physically engaged, mount and clamp the empty litter, then perform a lift test to verify the carrier and litter move as a single integrated unit before patient loading. The carrier secures the litter to the frame. Patient security remains the responsibility of the litter's integrated straps. These are distinct functions and must not be confused during field operations.

The folding frame collapses from a 45-inch operational length to a 20 by 27 by 35-inch cube for stowage in vehicles or aircraft. Post-mission protocol requires decontamination per agency bloodborne pathogen standards, a full damage inspection, and removal from service of any unit with cracks, deformation, or malfunctioning hardware until repaired.

---

Field Application Steps

1. UNSTOW AND POSITION THE CARRIER: Remove the folded carrier from its stowed location and place it on a stable, level surface before beginning deployment.

2. DEPLOY AND LOCK THE FRAME: Actuate the release mechanism and unfold the frame until fully extended. Confirm every locking mechanism is both audibly clicked and physically engaged, then stress-test by pressing firmly down on the frame.

3. MOUNT THE EMPTY LITTER: Place the empty basket litter or pole stretcher onto the deployed carrier frame before any patient is loaded.

4. ADJUST AND SECURE THE LITTER: Extend or compress the telescopic frame components until all clamps seat snugly against the litter rails. Engage every clamp, then perform a lift test by raising the assembly to confirm the carrier and litter move as a single integrated unit with no shift or separation.

5. TRANSFER THE PATIENT: Bring the secured carrier-litter unit adjacent to the patient. Execute a two-person or four-person lift, slide, or log-roll as required. Apply a backboard prior to transfer if spinal motion restriction is indicated.

6. SECURE THE PATIENT TO THE LITTER: Fasten the patient using the litter's integrated restraint straps. Confirm full securement before initiating any movement. The carrier secures the litter; patient restraint is a separate and required action.

7. ASSIGN OPERATOR POSITIONS AND INITIATE TRANSPORT: Place one rescuer at the front to guide, steer, and brake. Place one rescuer at the rear for primary propulsion. Establish and maintain constant verbal communication throughout transport.

8. NAVIGATE TERRAIN AT A CONTROLLED PACE: Maintain a deliberate speed at all times. For curbs, the front operator lifts while the rear operator pushes the wheels over, then the front operator lowers. For stairs, significant debris, or steep inclines, stop immediately and transition to a full manual carry.

9. EXECUTE PATIENT HANDOFF: Bring the carrier to a complete stop on level ground at the casualty collection point or ambulance. Transfer the patient to the receiving unit per local protocol. Unclamp the litter from the carrier if the litter will continue with the patient to the next transport stage.

10. DECONTAMINATE AND STOW: Clean and decontaminate the carrier per agency protocols for bloodborne pathogens. Collapse the frame, engage the storage lock, and return the unit to its designated stowage location secured within the vehicle.

---

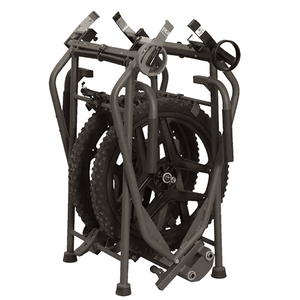

Kemp USA Wheeled Litter Carrier – Military-Style Stretcher Trolley
