Premium Power Outage Kit: Field Manual and SOP

How to Guides - Product Field Manual SOPs - Luminary Global

Premium Power Outage Kit: Field Manual and SOP

Category: Emergency Tools & Kits

Difficulty Level: Tier 1: No Training Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A power outage emergency kit is a field-ready collection of illumination, radio communication, and manual charging tools that enables households and stationary operators to maintain safety, situational awareness, and limited communication capability during a localized or regional power failure.

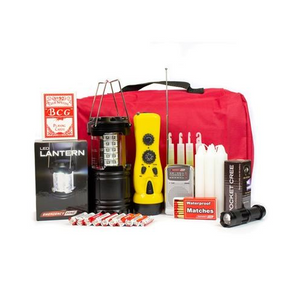

The Luminary Premium Power Outage Emergency Kit is organized around three operational priorities: area illumination via two collapsible LED lanterns, situational awareness via a dedicated AM/FM/NOAA Weather Band radio, and emergency communication support via a hand-crank USB charger. The kit deploys across three phases, beginning with immediate area lighting, followed by establishing a radio monitoring protocol, and concluding with resource management and contingency planning. Illumination redundancy is built into the kit through five distinct light sources, ranging from battery-powered lanterns to light sticks and candles reserved as last-resort options only.

Battery dependency is the primary readiness vulnerability in this kit. The lanterns, CREE flashlights, and WB radio all require user-supplied batteries that are not included. Operators must procure, install, and date-stamp fresh batteries before storing the kit, and replace them on a six-month inspection cycle to ensure the kit is functional at the moment it is needed.

The 4-in-1 dynamo tool provides battery-independent capability for flashlight, AM/FM radio, siren, and USB charging functions. The hand-crank USB charger is explicitly limited to enabling a single brief call or text and will not substantially recharge a modern smartphone. Understanding this limitation before deployment prevents wasted effort when communication capability is most critical.

Field Application Steps

1. RETRIEVE AND POSITION THE KIT: Locate the nylon pouch and move to your pre-designated central family location, such as a living room. Centralizing the kit reduces unnecessary movement through darkened spaces and consolidates all household members in one area.

2. DEPLOY AREA ILLUMINATION IMMEDIATELY: Pull the top section of one or both collapsible LED lanterns upward to expose the LED array and activate. Place on a stable, central surface to provide safe area lighting for the entire room.

3. ACTIVATE LIGHT STICKS AS CONTINGENCY ILLUMINATION: If lantern batteries are unavailable or depleted, bend each light stick tube until the inner vial snaps, then shake to activate. Deploy light sticks to maintain safe low-level illumination while preparing battery-dependent systems.

4. INSTALL BATTERIES AND ACTIVATE THE WB RADIO: Insert user-supplied batteries into the AM/FM/WB radio and power on. Tune to your pre-identified local NOAA Weather Band frequency, or scan the weather band until a clear broadcast is received.

5. ESTABLISH A RADIO MONITORING PROTOCOL: Listen for official updates, storm tracks, and emergency instructions. Conserve battery life by conducting listening checks for 5 to 10 minutes at the top of each hour, then switching the unit off between checks.

6. ASSIGN A TASK FLASHLIGHT FOR NAVIGATION: Keep one Pocket CREE Mini LED flashlight accessible to any individual who needs to move through unlit areas of the structure. Cycle through modes using the power button: high, low, and strobe. Use strobe mode only as a visual distress signal directed toward potential rescuers.

7. TEST THE DYNAMO TOOL AND RESERVE IT: Extend the hand crank and rotate steadily for 30 seconds to confirm the flashlight and AM/FM radio functions are operational. Reserve dynamo tool use to conserve manual energy for critical situations.

8. USE THE USB CHARGER FOR EMERGENCY CALLS ONLY: When a critical call or text is required, connect the mobile device to the dynamo tool USB output and crank continuously for the duration of the call. Do not attempt to pre-charge a phone with this tool, as the energy return is insufficient for meaningful battery restoration.

9. DEPLOY CANDLES ONLY AS A LAST RESORT: If all other illumination sources have failed, place candles on a non-flammable, stable surface such as a ceramic plate on a clear countertop. Maintain a minimum of 36 inches of clearance from all combustible materials, never leave a burning candle unattended, and ensure a fire extinguisher is accessible before igniting.

10. USE THE DYNAMO SIREN TO SIGNAL RESCUERS IF NEEDED: Activate the siren switch on the dynamo tool to emit a loud audible alarm. Use this function to alert rescuers to your location when verbal communication is not sufficient.

11. CONDUCT A POST-EVENT INSPECTION: After the outage is resolved and the kit has been used, perform a full inspection before restowing. Replace all consumed or depleted batteries, replenish any activated light sticks or burned candles, and confirm all 18 components are present and correctly stowed in the nylon pouch.
