R&B Duty Belt (2-Inch) | Field Manual & SOP

How to Guides - Product Field Manual SOPs - Luminary Global

R&B Duty Belt (2-Inch) | Field Manual & SOP

Category: Tool Belt Work Safety Tethers

Difficulty Level: Tier 1: No Training Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

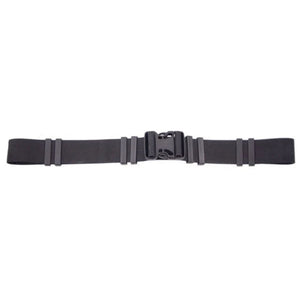

The R&B Duty Belt Model 676BK is a 2-inch heavy-duty nylon webbing platform designed for Fire-Rescue, EMS, Law Enforcement, Security, and Search and Rescue personnel who require stable, organized, and rapidly deployable equipment carry at the waistline during active operations.

The 676BK provides a rigid chassis capable of supporting radios, multi-tools, glove pouches, flashlights, and trauma shears without excessive flexing or twisting under field conditions. Its Delrin side-release buckle is operable single-handed even with gloves on, enabling rapid donning and doffing during vehicle-to-scene transitions. Integrated belt keepers lock individual pieces of equipment in position, preventing horizontal drift and maintaining consistent muscle memory for tool access across varied terrain.

Operator readiness depends on proper initial configuration. The Tri-Glide Slide Adjuster controls circumference fit across uniform layers or turnout gear, and excess webbing beyond 8 to 10 inches may be permanently trimmed and heat-sealed to prevent fraying. Pre-use inspection every shift covers webbing integrity, buckle actuation, keeper function, and cleanliness, ensuring the system performs when deployment conditions are most demanding.

This belt carries a categorical limitation that all operators must internalize before fielding the system. The Delrin buckle is not load-rated for human body weight and is the designed point of failure under overload. It is not authorized for rappelling, fall arrest, patient rescue, vehicle extraction, or any life-safety tethering application. Use outside this scope will result in buckle failure and potential serious injury or death.

---

Field Application Steps

1. UNBUCKLE AND LAY FLAT: Disengage the Delrin side-release buckle and lay the belt on a flat surface to begin sizing. If the belt will be threaded through trouser belt loops, do so now before sizing.

2. GAUGE CIRCUMFERENCE OVER ALL LAYERS: Wrap the belt around your waist over every garment layer you will wear during operations, including turnout pants or external gear, to establish the correct working circumference.

3. ADJUST THE TRI-GLIDE SLIDE: Feed the webbing through the Tri-Glide Slide Adjuster to eliminate all excess slack until the belt sits snug and stable without binding.

4. TRIM EXCESS WEBBING (PERMANENT MODIFICATION): If the excess tail exceeds 8 to 10 inches after adjustment, measure carefully and cut the webbing with a sharp blade in one clean, straight pass. This modification is permanent and cannot be undone.

5. HEAT-SEAL THE CUT END: In a well-ventilated area clear of flammable materials, carefully apply controlled heat to the trimmed webbing end until the nylon fibers melt and fuse into a sealed edge. Avoid overheating, which will make the webbing brittle at the seal point.

6. MOUNT ALL EQUIPMENT POUCHES: Slide all required pouches, holsters, and tool carriers onto the belt webbing before donning. Complete the full equipment load before positioning.

7. POSITION EQUIPMENT BY DRAW PATTERN: Place each piece of equipment according to operational protocol and established muscle memory. Standard practice positions the radio on the non-dominant side and primary tools on the dominant side.

8. LOCK EQUIPMENT WITH BELT KEEPERS: Slide an integrated belt keeper snugly against both sides of each mounted pouch or holster to prevent horizontal movement during operations.

9. DON AND CONFIRM BUCKLE ENGAGEMENT: Wrap the configured belt around your waist, insert the male buckle end firmly into the female housing until an audible and tactile click registers, then perform a firm pull test to confirm positive engagement before proceeding to the operational area.

10. DOFF ON RETURN: To remove the belt, simultaneously depress both side prongs on the male buckle until it disengages fully, then clear the belt from your waist.

---

Equip Yourself: R&B Duty Belt – 2” Nylon Webbing with Quick-Release Buckle

Ensure you have the right gear before an emergency strikes.

View Product
