Quick Overview

The Mechanical Hose Bundle System is a three-strap, cam-buckle-secured transport system that firefighters use to bundle and carry heavy or large-diameter hose lines during high-rise operations, extended attack deployments, and LDH management where conventional Velcro straps risk slippage or failure.

The system replaces hook-and-loop straps with three independent cam buckles rated to 3,000 lb test nylon webbing, each 42 inches long and 2 inches wide, to create a positive mechanical lock that holds under dynamic movement including ladder climbs, stairwell ascents, and debris field navigation. Oversized torque rings on the running end of each strap provide a high-purchase grip point engineered for use with structural firefighting gloves, allowing operators to achieve full compression even under field conditions. The padded hi-vis shoulder sling attaches via heavy-duty snap hooks to the outer straps, integrating the securing harness and carrier into a single field-ready system that distributes load weight across the shoulder and torso.

Deployment protocol sequences the system in four phases: preparation and loading, mechanical securing of the bundle, transport via shoulder sling, and rapid release at the objective point. Releasing the load requires only depressing the lever on each of the three cam buckles, instantly freeing the hose for charging and advancement. The system is rated for hose transport only and is not approved for life-safety applications, anchoring, or hoisting personnel or equipment under any circumstances.

Post-deployment readiness requires a visual and tactile inspection of webbing, hardware, and sling components after every use. Operators must check for cuts, fraying, heat damage, chemical contamination, and cam buckle deformation before returning the system to service. All components must be air-dried completely before stowing, as damp webbing stored in a compartment will develop mildew and experience accelerated strength degradation.

---

Field Application Steps

1. LAY OUT STRAPS: Place all three cam-buckle straps flat and parallel on the ground or apparatus tailboard, spacing them to match the length of the hose load to ensure even compression across the bundle.

2. LOAD THE HOSE: Place the folded or coiled hose load squarely on top of the three straps, with the hose centered and couplings positioned per departmental policy to prevent snagging during transport.

3. SECURE THE CENTER STRAP: Feed the running end of the center strap through its cam buckle, pull all initial slack by hand, then grasp the torque ring and pull firmly and horizontally away from the buckle to ratchet and compress the hose into a rigid load.

4. VERIFY BUCKLE ENGAGEMENT: Confirm that the cam buckle's teeth have positively locked onto the webbing before proceeding. A partially engaged buckle can release unexpectedly and drop the load.

5. SECURE OUTER STRAPS: Repeat the tightening and verification process on both outer straps. The completed bundle should be rigid with no sagging at any point along its length.

6. ATTACH SHOULDER SLING: Clip one snap hook to the top webbing of the forwardmost strap and the second snap hook to the rearmost strap. Adjust sling length for operator comfort and load stability.

7. HOIST AND TRANSPORT: Lift the bundle using proper technique, driving with the legs and keeping the back straight. Position the sling pad for maximum comfort and proceed to the objective point.

8. DEPLOY AT OBJECTIVE: Place the bundle on the ground at the deployment location and detach the shoulder sling. Depress or flip the release lever on each of the three cam buckles to instantly release all tension, then pull the straps clear. The hose is now free and ready for charging and advancement.

9. CONDUCT POST-USE INSPECTION: After every deployment, inspect all webbing for cuts, fraying, heat damage, chemical contamination, and abrasion. Inspect cam buckles and torque rings for cracks, deformation, or corrosion, and confirm smooth lever action and positive spring engagement on each buckle.

10. CLEAN AND STOW: Remove dirt and debris with a stiff brush and water. For heavy soiling, wash with mild soap, rinse thoroughly, and air-dry all components completely before stowing. Store in a clean, dry apparatus compartment away from direct sunlight, petroleum products, and physical damage, with straps coiled neatly and untangled for rapid deployment.

---

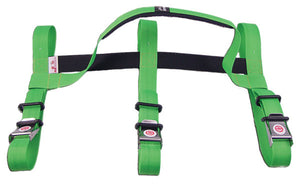

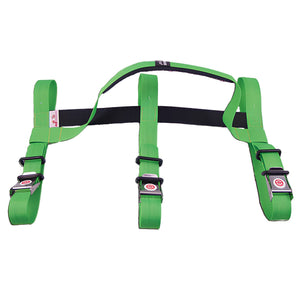

Equip Yourself: R&B Gripper Hose System – High-Capacity Cam Buckle Carrier
