R&B Ladder Boot SOP: Field Manual for Fire Apparatus Safety

Category: Work Safety Protective Gear

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The R&B Original Ladder Boot is a passive safety device used by fire apparatus crews to protect personnel from blunt force impact injuries and warn following vehicle traffic by covering the protruding ends of externally-mounted ladders and equipment.

The Ladder Boot addresses two operational hazards present on any apparatus carrying externally-mounted ladders: accidental contact injuries to ground personnel working around the rig, and low-visibility exposure to following vehicle traffic. Its Cordura nylon shell provides resistance to abrasion, UV exposure, moisture, and road debris, while a high-density impact foam core absorbs and dissipates energy upon contact. A retroreflective "STAY BACK" strip sewn onto the rear-facing surface acts as a passive warning system during nighttime operations. Deployment supports departmental compliance with NFPA 1901 apparatus safety recommendations.

The attachment and retention system is built around a 2-inch webbing strap routed around a solid anchor point such as a rung or beam, secured by a double-shear Velcro lock on both sides of the strap flap. This configuration resists peeling and wind forces during transit. Correct sizing is critical to secure retention: the Medium fits a single roof ladder, the Large fits a standard extension and roof ladder combination, and the X-Large accommodates larger multi-ladder stacks. A boot that is oversized for the stack cannot be adequately secured and presents a projectile detachment hazard at speed.

Sustainment protocol requires daily and weekly inspection of physical security, Velcro integrity, webbing and stitching condition, shell and foam integrity, and reflective strip visibility. Cleaning requires mild soap, water, and complete air drying before reinstallation. Any boot with failed Velcro, compromised webbing, failed stitching, or exposed foam must be removed from service immediately.

Field Application Steps

1. SIZE VERIFICATION: Identify the ladder stack configuration on the apparatus and select the correctly sized boot. Use Medium (4" W) for a single roof ladder, Large (9" W) for a standard extension and roof ladder combination, and X-Large (11" W) for larger multi-ladder stacks.

2. POSITIONING AND INSTALLATION: Approach the ladder end from a stable position. Slide the boot's opening fully over the end-section of the ladder or ladder stack, ensuring all hard edges and corners are covered within the 8-inch depth of the boot.

3. REFLECTIVE STRIP ORIENTATION: Orient the reflective "STAY BACK" strip so it faces directly rearward, toward following vehicle traffic, before proceeding to strap attachment.

4. ANCHOR POINT IDENTIFICATION AND STRAP ROUTING: Identify a solid anchor point on the ladder assembly, either a rung or structural beam. Route the 2-inch webbing strap fully around the anchor point and pull it tight to remove all slack.

5. DOUBLE-SHEAR VELCRO LOCK ENGAGEMENT: Fold the strap end back onto itself and press both Velcro hook-and-loop surfaces firmly together along their entire length to fully engage the double-shear lock. Partial engagement is not acceptable.

6. FINAL PHYSICAL VERIFICATION: Grasp the body of the installed boot and attempt to pull it free. The boot must not slip, rotate, or detach under a firm tug. If it moves, re-secure the strap and re-engage the lock before the apparatus is cleared for movement.

7. VISUAL VERIFICATION: Confirm the "STAY BACK" reflective strip is unobstructed and fully visible from the rear of the apparatus. Confirm the installed boot does not interfere with any ladder rack locking mechanisms.

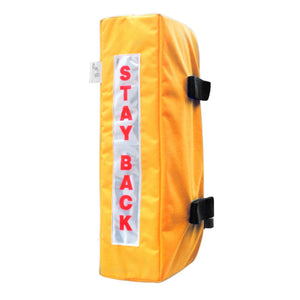

R&B Original Ladder Boot – Cordura Padded Ladder End Cover

Equip Yourself: R&B Original Ladder Boot – Cordura Padded Ladder End Cover

Ensure you have the right gear before an emergency strikes.

View Product
