Written by: Valerie Ellis Lavin

Quick Overview

The R&B Fabrications American Proud Ladder Boot is a professional-grade fire apparatus safety device that fire engineers and crew members install over protruding rear-mounted ladder ends to reduce personnel injury risk and increase vehicle conspicuity in low-light conditions.

The boot serves two distinct operational missions. First, high-density internal foam padding provides a padded buffer over sharp, exposed ladder ends, reducing the severity of accidental head and body strikes to personnel operating around the apparatus. Second, a white 3M Scotchlite reflective rear panel returns brilliant white light when struck by oncoming headlights, defining the rearmost edge of the apparatus for trailing motorists and reducing the risk of rear-end collisions. The product is designed in compliance with NFPA 1901 recommendations for marking and protecting rear-mounted ladder protrusions.

The attachment system uses two 2-inch side-release Delrin buckles and a heavy-duty retainer strap that encircles a ladder rung or beam. Proper deployment requires both buckles to audibly click into a positive lock and all strap slack to be fully cinched, compressing the foam slightly with no free play. A final tug test confirming zero shift, slip, or rotation is the only acceptable standard for operational readiness.

Sustained readiness requires pre-shift tug tests, weekly post-wash inspections of buckles and straps, and immediate removal from service if buckles crack, straps show more than 25 percent fiber compromise, or the vinyl body is torn to the point of exposing internal foam. The reflective panel must remain clean to maintain its visibility capability.

Field Application Steps

1. CONFIRM SIZING: Select Large (9 inches wide) for standard extension and roof ladder combinations, or Extra Large (11 inches wide) for wider stacks such as 3-section ladders. An incorrectly sized boot will not tension properly and must not be used.

2. INSPECT THE BOOT BEFORE INSTALLATION: Perform a visual and tactile inspection of the new boot. Verify both Delrin buckles actuate and release correctly, and confirm the retainer strap is free of cuts, frays, or abrasion damage.

3. CLEAR THE LADDER ENDS: Remove any mud, debris, or obstructions from the protruding ladder ends. The boot must seat fully and flush against the ladder ends for the attachment system to function correctly.

4. POSITION THE BOOT: Slide the boot opening over the entire protruding ladder stack, pushing it on as far as it will go until it seats flush against the ladder ends.

5. ROUTE THE RETAINER STRAP: Pass the retainer strap around a secure structural component, typically the first available ladder rung or main beam. This prevents the boot from sliding off during apparatus operation.

6. SECURE BOTH BUCKLES: Bring the male and female ends of each buckle together and press firmly until an audible click is heard. An audible click on each buckle confirms positive lock engagement.

7. CINCH FOR FULL TENSION: Pull the loose end of each strap to eliminate all slack. The boot should be cinched with significant tension, compressing the internal foam slightly. There must be no free play or rattling.

8. EXECUTE THE TUG TEST: Grasp the boot firmly and attempt to pull it straight off and side-to-side. The boot must not shift, slip, or rotate in any direction. If any movement is detected, return to Step 7 and re-cinch. The boot is only operationally deployed after passing the tug test.

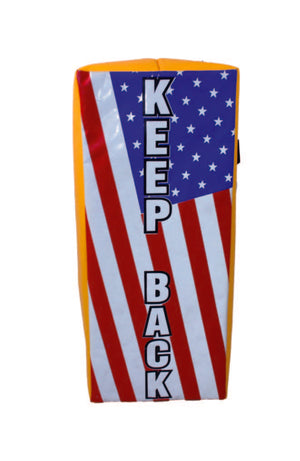

Equip Yourself: R&B American Proud Ladder Boot – Reflective Flag “KEEP BACK” Cover
