Quick Overview

The Rothco 10x50mm Binoculars are a fixed-power optical observation instrument used by search and rescue operators, field teams, and outdoor personnel to identify subjects, assess terrain, and maintain situational awareness at distances beyond the range of the naked eye.

These binoculars deliver 10x magnification through 50mm objective lenses, producing a 5mm exit pupil that supports effective low-light deployment during crepuscular periods such as dawn and dusk. The 367-foot field of view at 1,000 yards enables wide-area scanning with minimal instrument movement, making the unit well-suited for static observation post operations. Primary capability is drawn from a static or slow-moving position, where the operator can brace effectively and extract maximum detail from the target area.

Proper operator calibration is essential to readiness and eye health. The diopter adjustment ring compensates for differences in vision between the left and right eyes and must be set before field use. Once calibrated, the center focus wheel handles all distance adjustments. The Porro prism system is factory-aligned and not user-serviceable; a significant impact can cause collimation failure, rendering the unit unusable.

This instrument is rated for light moisture and general field conditions but is not waterproof or nitrogen-purged. Internal fogging is a known risk when moving rapidly between temperature extremes. Proper post-mission sustainment, including lens cleaning with appropriate tools and controlled-environment storage, directly extends the service life of the optic.

Field Application Steps

1. PRE-OPERATIONAL CHECK: Remove the binoculars from the carrying case and remove all four lens caps, stowing them securely. Inspect both objective and ocular lenses for dirt, smudges, or damage before deployment.

2. PLACE AND ADJUST THE NECK STRAP: Place the neck strap over your head and adjust it for rapid, secure deployment. Confirm the strap is firmly attached to both lugs to prevent dropping the unit.

3. SET INTERPUPILLARY DISTANCE (IPD): Bring the binoculars to your eyes and pivot the barrels at the center hinge until the two images merge into one single, complete circle with no black edges. This setting matches the instrument to your individual eye spacing.

4. CALIBRATE THE DIOPTER: Select a stationary, detailed object at 100 yards or beyond. Cover the right objective lens and use the center focus wheel to achieve sharp focus for your left eye only. Then cover the left objective lens and adjust the diopter ring on the right eyepiece until the image is sharp for your right eye. Uncover the left lens. The unit is now calibrated.

5. ACQUIRE A STABLE OBSERVATION POSITION: Take a braced position, prone, kneeling on elbows, or supported against a tree or vehicle, before beginning observation. At 10x magnification, unsupported hand tremors are significantly amplified and will degrade image clarity and increase eye strain.

6. FOCUS ON THE TARGET AREA: Use only the center focus wheel to bring the target area into sharp focus. Do not adjust the diopter ring again unless recalibrating for a different operator.

7. EXECUTE A SYSTEMATIC AREA SCAN: Divide the observation area into a grid. Scan from top-left to right across one field of view, drop one field-of-view width, then scan back left. Repeat this pattern until the full area is covered.

8. POST-MISSION LENS CLEANING: Use a puffer bulb or canned air to remove loose dust and grit before any contact with the lens surface. For remaining smudges, use a dedicated lens cloth in a gentle circular motion from the center outward. Never use shirt tails, paper towels, or solvents.

9. POST-MISSION BODY AND STRAP INSPECTION: Wipe the chassis with a damp cloth to remove dirt and mud, then dry thoroughly before storage. Inspect the neck strap for fraying or damage at the attachment points.

10. CONDUCT COLLIMATION CHECK: Focus on a distant horizontal line and slowly pull the binoculars away from your eyes. If the image splits into two, the unit has lost collimation and requires professional service before further deployment.

11. STORE THE UNIT CORRECTLY: Secure all lens caps, place the binoculars in the padded carrying case, and store in a low-humidity, controlled-temperature environment. Do not store in vehicle glove boxes or trunks, where temperature fluctuations will degrade optics and seals over time.

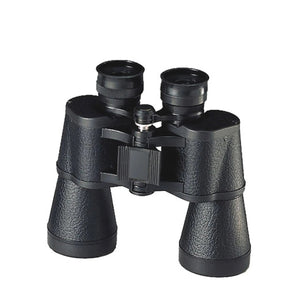

Equip Yourself: Rothco 10 x 50mm Binoculars | Outdoor & Hunting Optics
