Rothco 5-in-1 Survival Tool Field Manual | SOP & Deployment Guide

Category: Multifunction Tools & Knives

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco 5-in-1 Multi-Purpose Survival Tool is a compact, modular field system that enables operators to perform digging, chopping, sawing, hammering, and navigation tasks using a single handle platform in general field craft, campsite management, trail clearing, and emergency vehicle recovery situations.

The tool is built around a heavy-duty steel handle with a reinforced rubber grip that maintains positive control in wet, cold, or gloved conditions. A threaded locking collar secures the selected tool head and is the most critical component for safe operation, preventing head detachment during dynamic use. The hollow handle compartment, accessed via the base cap, provides integrated storage for small survival items including fire tinder, matches, fishing line, hooks, or water purification tablets. A liquid-filled button compass is embedded in the base cap as a backup navigational aid for gross direction finding only.

Five attachment configurations expand the tool's field capability across two functional groups. The earth-moving group includes a shovel head for fire pits, latrines, defensive positions, and vehicle recovery, and a pick axe head for breaking hard, compacted soil, clay, or ice. The wood processing group includes an axe head for limbing, kindling splitting, and light brush clearing, and a saw attachment for clean cuts on branches and small logs up to 3 to 4 inches in diameter. The axe head also integrates a flat poll for driving tent stakes and a notch for stake extraction.

This tool is a deliberate trade of full-sized implement leverage and durability for portability and reduced weight. It is not a replacement for a felling axe, demolition pick, or full-tang survival knife. Operator judgment on task suitability is essential to safe and effective deployment.

---

Field Application Steps

1. TASK ASSESSMENT AND TOOL SELECTION: Evaluate the task before retrieving any components. Select the axe or saw head for clearing vegetation, the shovel for fire pit excavation, or the pick axe for breaking compacted soil, clay, or ice.

2. COMPONENT RETRIEVAL: Open the nylon carrying case and remove the handle and the selected tool head. Verify the correct head is matched to the task before proceeding to assembly.

3. PRE-ASSEMBLY INSPECTION: Inspect all metal components for rust, cracks, or stress fractures. Verify locking collar threads are clean, unstripped, and turn smoothly. Check the rubber grip for tears or separation.

4. SECURE ASSEMBLY: Unscrew the locking collar fully. Seat the tool head completely onto the handle. Hand-tighten the collar until firm.

5. FUNCTION CHECK: Perform a physical function check by twisting and pulling the head against the collar. No wobble is permitted. Do not proceed to operation if any movement is detected.

6. CONTROLLED OPERATION, AXE OR PICK: Establish firm footing and clear the swing path of all personnel before each stroke. Use controlled, deliberate swings driven from the core. Wear eye protection throughout.

7. CONTROLLED OPERATION, SAW: Secure the wood before beginning any cut. Use smooth, consistent push-pull strokes and allow the teeth to do the work. Do not bend or force the blade.

8. CONTROLLED OPERATION, SHOVEL: Drive the shovel using leg and core muscles rather than the lower back. Brace the tool for control when breaking new ground.

9. LOCKING COLLAR VERIFICATION DURING USE: Periodically check locking collar tightness during strenuous or prolonged operation. Retighten by hand if any loosening is detected before continuing.

10. DISASSEMBLY: Loosen the locking collar and remove the tool head. Handle all cutting, chopping, and digging attachments with deliberate care. Work gloves are strongly recommended during disassembly to prevent lacerations.

11. CLEANING AND CORROSION PREVENTION: Thoroughly clean all components of dirt, moisture, and sap. Dry completely before stowage. Apply a light coat of machine oil or rust inhibitor to all metal surfaces and threads before long-term storage.

12. INVENTORY AND STOWAGE: Return all components to the nylon carrying case and conduct a full inventory to confirm every attachment is accounted for. Restock any items consumed from the hollow handle storage compartment before securing the case.

---

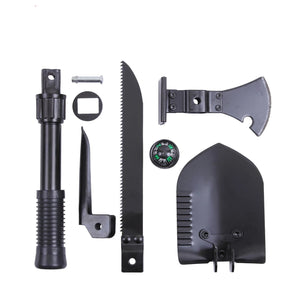

Rothco 5-in-1 Multi-Purpose Survival Tool - Axe, Shovel, Saw
