Rothco 5-Point Breakaway Safety Vest: Field Manual & SOP

Category: Work Safety Protective Gear

Difficulty Level: Tier 1: No Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A high-visibility breakaway safety vest is a Class 2 ANSI/ISEA 107-2010 compliant PPE garment used by law enforcement, EMS, construction personnel, and traffic control operators to maximize conspicuity and prevent entanglement injuries in active roadway and machinery environments.

The vest's visibility capability is built on two systems working together. The fluorescent polyester mesh body provides maximum daylight conspicuity while its open construction dissipates heat during extended wear. Two-inch silver reflective tape with contrasting trim delivers passive retro-reflection in low-light and nighttime conditions, returning light directly toward its source from 360 degrees of approach. This dual-layer design ensures the operator remains identifiable whether working under direct sunlight or at the edge of headlight range.

The 5-point breakaway system is the vest's primary life-safety feature, engineered to release under moderate-to-high tension at two shoulder points, two side torso points, and one front center closure. If the vest is snagged by a vehicle mirror, caught in machinery, or grabbed during a physical confrontation, the hook-and-loop fasteners separate immediately, preventing the operator from being pulled, dragged, or choked. The vest is designed as a sacrificial garment; personal safety takes priority over equipment recovery.

Sustained readiness requires pre-use inspection before every deployment, post-use inspection after exposure to contamination or a force event, and formal quarterly serviceability assessments. A soiled vest is a failed vest. Reflective degradation beyond 25 percent of tape surface area renders the garment non-compliant and demands immediate replacement.

---

Field Application Steps

1. PRE-DEPLOYMENT VISUAL INSPECTION: Examine the entire vest for soiling, as contamination significantly degrades reflectivity and visibility. If the vest cannot be restored to original brightness, remove it from service before deployment.

2. REFLECTIVE TAPE ASSESSMENT: Inspect all reflective tape for cracking, peeling, or abrasion. If more than 25 percent of the reflective material is compromised, the vest is non-compliant and must be replaced immediately.

3. BREAKAWAY POINT VERIFICATION: Individually check all five hook-and-loop fasteners at the shoulders, side torso panels, and front center closure. Confirm each point is free of debris and establishes a positive, secure connection when pressed together.

4. DONNING AND INITIAL CLOSURE: Place the vest over your uniform or outer garments and align the front hook-and-loop closure. Press firmly until fully engaged.

5. SIDE AND SHOULDER SECURING: Press both side panel fasteners firmly and adjust fit so the vest is snug without restricting breathing or freedom of movement. Confirm both shoulder fasteners are properly aligned and secured.

6. EQUIPMENT INTEGRATION: Clip your radio microphone to one of the dual mic tabs on the upper chest or shoulder. Insert your primary identification into the clear ID holder and place a pen or marking instrument in the designated pen pocket.

7. ACTION DURING A BREAKAWAY EVENT: Do not attempt to grab the vest or re-secure it if a breakaway activates. Immediately disengage from the hazard by stepping away from the vehicle or pulling clear of the machinery. The vest is sacrificial; your safety is the priority.

8. POST-EVENT RECOVERY: Once the scene is secure, retrieve the vest and assess it for damage. Reassemble only if all fasteners and reflective material are fully intact and undamaged.

9. DOFFING AND POST-USE INSPECTION: Systematically detach the front and side hook-and-loop points to remove the vest. Conduct a full post-use inspection per the pre-deployment protocol before returning the garment to storage.

10. CLEANING PROTOCOL: Secure all hook-and-loop fasteners before washing to prevent snagging and lint accumulation. Machine wash on a gentle cycle with mild detergent in cold or warm water, then tumble dry on low heat or air dry. Do not use bleach or fabric softener, as both destroy reflective material properties.

11. STORAGE: Store the vest in a controlled environment away from direct sunlight, as UV exposure degrades fluorescent material over time. Ensure the vest is completely dry before stowing to prevent mildew.

12. END-OF-SERVICE-LIFE ASSESSMENT: Retire the vest immediately if fasteners are frayed or no longer secure, reflective material has lost retro-reflective properties, background fabric is faded or torn, or the vest has been subjected to a significant force event that may have stressed seams or fabric beyond design limits.

---

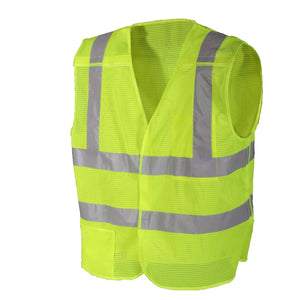

Equip Yourself: Rothco 5-Point Breakaway Safety Vest – High-Visibility Safety Gear
