Quick Overview

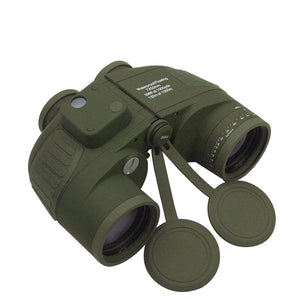

The Rothco 7x50mm Military Binoculars are a professional-grade optical observation system used by field operators for reconnaissance, marine navigation, target range estimation, and search and rescue operations in demanding environmental conditions.

These binoculars integrate three core capabilities into a single deployable tool: 7x magnification through 50mm objective lenses for superior light gathering, an internal fluid-dampened magnetic compass visible in the right eyepiece for continuous bearing readout, and a mil-based rangefinder reticle in the left eyepiece for distance estimation to objects of known size. The chassis is nitrogen-purged and O-ring sealed for waterproof and fog-proof performance, and the unit is buoyant, making it field-ready for amphibious and over-water operations.

Range estimation is calculated using a fixed formula: object height in meters multiplied by 1000, divided by the reticle reading in mils. A target with a known mast height of 10 meters reading 20 mils on the reticle places that target at 500 meters. Accuracy depends entirely on the operator's knowledge of the target's actual dimensions, not on any laser or electronic system.

A key operational limit is that this is a passive optical device requiring ambient light to function. The internal illuminator activates only the compass and reticle displays, not the observed scene, and produces a faint light that can compromise position in a tactical environment. The unit is not compatible with solar observation under any circumstances, as magnified solar radiation causes immediate and permanent eye damage.

Field Application Steps

1. INITIAL PREPARATION: Remove the binoculars from the carrying case and remove all four lens covers, securing them so they are not lost. Loop the neck strap around your neck before raising the optic to prevent equipment loss.

2. DIOPTER CALIBRATION FOR RIGHT EYE: Select a stationary, high-contrast object at greater than 50 meters. Cover the left objective lens and, with both eyes open, rotate the right diopter ring until the image is sharp.

3. DIOPTER CALIBRATION FOR LEFT EYE: Cover the right objective lens and rotate the left diopter ring until the image is sharp. Do not adjust the right diopter again. The binoculars are now calibrated for your eyes and will maintain focus on all objects from approximately 20 meters to infinity.

4. TARGET ACQUISITION AND BEARING: Raise the binoculars and acquire the target in the field of view. Look into the right eyepiece to read the magnetic bearing from the integrated compass overlay. At low light or twilight, press the illuminator button on the top right of the chassis to illuminate the compass display.

5. HEADING DETERMINATION: Observe the target's direction of travel relative to successive compass bearing readings. Track bearing change over time to determine the target's heading and report it accurately.

6. RANGE ESTIMATION VIA RETICLE: Shift attention to the left eyepiece to view the mil-based rangefinder reticle. Know or estimate the height or length of the target object before applying the formula.

7. RETICLE MEASUREMENT: Align the base of the target with the horizontal zero line of the vertical reticle scale. Read the mil value where the top of the target falls. For example, a mast top falling at 20 mils with a known height of 10 meters yields a range of 500 meters using the formula: object height in meters multiplied by 1000, divided by reticle reading in mils.

8. REPORT FORMAT: Once bearing and range are confirmed, deliver the report using standard format: vessel type, range in meters, bearing in degrees, and heading. Example: "Vessel identified, patrol craft, range 500 meters, bearing 270 degrees, heading north."

9. POST-MISSION STOWAGE: Clean the lenses if required using the provided microfiber cloth, wiping in a gentle circular motion from center outward after breathing lightly on the lens surface. Never wipe a gritty lens dry. Replace all four lens covers and store the unit in the carrying case.
