Quick Overview

The Rothco 8x21mm Compact Binocular is a daylight observation optic providing 8x fixed magnification for patrol, reconnaissance, search and rescue, and prepared citizen use at ranges from 50 to 800 yards.

This binocular delivers a 372-foot field of view at 1,000 yards, making it a capable tool for methodical area scanning, initial threat detection, route assessment, and terrain evaluation in favorable lighting conditions. Its compact form factor supports rapid deployment from a pocket, vehicle glove box, or go-bag, and the woodland camouflage body provides passive concealment in temperate, vegetated environments. The operator should understand this optic as a detection tool, not a positive identification tool, at extended ranges.

The 21mm objective lens is the defining capability constraint of this optic. It gathers insufficient ambient light for effective use at dawn, dusk, under heavy overcast, or in deeply shaded environments. Operators requiring low-light readiness must supplement with a larger-objective optic rated for those conditions. Looking directly at the sun or any concentrated light source through the lenses will cause immediate, permanent retinal damage.

Sustained readiness requires a consistent pre-use inspection protocol covering lens surfaces, control function, body integrity, and barrel collimation. Lenses must be cleaned using a lens blower followed by a microfiber cloth with dedicated lens solution, never clothing or general-purpose cleaners. Storage in the provided case within a low-humidity environment preserves optical performance between deployments.

Field Application Steps

1. PREPARE THE OPTIC: Remove the binocular from the carrying case and attach the neck lanyard. Determine your eyewear status and fold the rubber eyecups down if wearing prescription or safety glasses, or leave them in the up position if not wearing glasses.

2. SET INTERPUPILLARY DISTANCE (IPD): Bring the binoculars to your eyes while looking at a distant object. Pivot the hinged bridge inward or outward until you see a single, perfectly round field of view with no black edges at the margins.

3. CALIBRATE THE DIOPTER: Select a stationary object at least 100 yards away. Cover your right eye and use the Center Focus Wheel to bring the image into sharp focus for your left eye. Then cover your left eye and use the Diopter Adjustment Ring on the right eyepiece only to focus the right eye. Record the diopter setting for future reference.

4. STABILIZE YOUR POSITION: Brace your arms against a solid surface such as a wall, tree, or vehicle before beginning observation. A kneeling or prone position further reduces image shake and improves the reliability of your observations.

5. FOCUS FOR THE FIELD: Use only the Center Focus Wheel for all focusing adjustments during field operation. Do not readjust the Diopter Ring once your initial calibration is complete.

6. EXECUTE METHODICAL AREA SCANNING: Scan in a disciplined grid pattern, moving left to right, dropping down one field width, then moving right to left. Do not sweep rapidly across the area. Pause on each point of interest and observe before continuing. The 372-foot field of view at 1,000 yards supports systematic area coverage.

7. INSPECT BEFORE STOWING: After use, inspect all four lens surfaces for dirt, smudges, or damage. Confirm controls move smoothly and the image through both barrels remains collimated. If a persistent double image cannot be corrected by IPD adjustment, the unit is unserviceable and must be replaced.

8. CLEAN AND STORE: Use a lens blower or soft camel hair brush to remove loose debris from all lens surfaces before wiping. Apply dedicated lens cleaning solution to a microfiber lens cloth and wipe in a circular pattern from center to edge. Store the optic in the provided carrying case in a low-humidity environment, and include a desiccant pack for long-term storage in damp conditions.

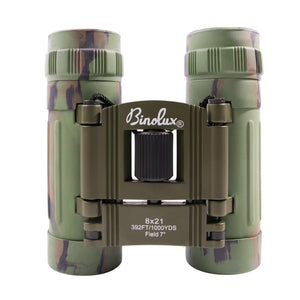

Equip Yourself: Rothco Camo Compact 8x21mm Binoculars | Lightweight Hunting Optics
