Rothco 8x42 Binoculars Field Manual: SOP for Observation & Scouting

Category: Binoculars

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco 8x42 Binoculars are a professional-grade optical observation tool used by search and rescue teams, law enforcement, and field operators to identify terrain features, personnel, and hazards at medium range beyond the limits of the unassisted eye.

The 8x42 designation defines core operational capability: 8x magnification brings objects eight times closer than visible to the naked eye, while the 42mm objective lenses provide strong light-gathering performance effective in daylight, overcast, and crepuscular conditions. Multi-coated optics on all lens surfaces reduce glare and reflection, increasing light transmission for a brighter, higher-contrast image during low-light deployment windows. This is a visible light optic only and will not function in darkness.

Proper calibration is essential to readiness and operator comfort. The diopter adjustment ring compensates for vision differences between eyes and must be set once per operator before field use. Interpupillary distance is adjusted via the hinged bridge until a single, unified circle is achieved, eliminating eye strain during extended observation. After calibration, all subsequent focusing is performed exclusively with the center focus wheel.

Systematic scanning protocol is required to cover large areas effectively with the 7.5-degree field of view. Operators should use either the Grid Method, dividing the area into overlapping sectors scanned left-to-right then right-to-left, or the Horizon Method, scanning full lateral strips from the horizon progressively toward the foreground. Random panning reduces detection probability and should never be used in operational contexts.

---

Field Application Steps

1. ESTABLISH CARRY CONFIGURATION: Remove the binoculars from the carrying case and attach the neck strap securely to both attachment lugs. Place the strap around your neck before handling the optic to prevent drops and ensure rapid task transition.

2. ADJUST INTERPUPILLARY DISTANCE (IPD): Hold the binoculars up and look at a distant object. Pivot the hinged bridge to move the barrels closer together or farther apart until you see a single, perfect circle. Two overlapping circles indicate incorrect IPD and must be corrected before proceeding.

3. CALIBRATE THE DIOPTER: Select a stationary object 50 to 100 yards away. Cover the right objective lens and use the center focus wheel to focus for your left eye only. Then cover the left objective lens and use only the diopter adjustment ring to focus for your right eye. Do not touch the center focus wheel during the right-eye step.

4. CONDUCT PRE-USE INSPECTION: Inspect all four lens surfaces for dirt, smudges, moisture, scratches, or cracks. Confirm the center focus wheel, diopter ring, and hinged bridge operate smoothly without looseness or resistance. Check the chassis for structural damage and verify the neck strap is securely attached.

5. CLEAN LENSES IF REQUIRED: Use a blower brush or canned air to remove loose particles before any contact with the lens surface. Fog the lens with your breath, then wipe in a circular motion from center outward using only the provided microfiber lens cloth. For heavy soiling, use dedicated lens solution and lens tissue only. No substitute materials are permitted.

6. FOCUS FOR YOUR TARGET DISTANCE: For all field observations at any range, use only the center focus wheel to achieve a sharp image. Both eyes will focus simultaneously once diopter calibration is complete.

7. EXECUTE SYSTEMATIC AREA SCAN: Do not pan randomly. Use the Grid Method by dividing the target area into a mental grid and scanning each sector left-to-right, then dropping down and scanning right-to-left with 10 to 20 percent overlap between passes. Alternatively, use the Horizon Method by scanning one full lateral strip at the horizon, dropping slightly, and repeating until the foreground is covered.

8. BRACE FOR EXTENDED OBSERVATION: For sustained scanning, brace both arms against a stable surface such as a tree, rock, or vehicle. The 8x magnification amplifies body movement and breathing tremors, and bracing reduces image shake to maintain effective detection capability.

9. STOW AFTER USE: Replace all lens caps and clean any dirty or wet surfaces with the lens cloth before stowing. Place the binoculars in the carrying case for transport. For long-term storage, keep in a cool, dry, well-ventilated environment and avoid storing in vehicles where temperature fluctuations degrade optical components and seals.

---

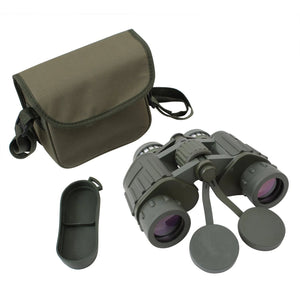

Rothco 8 x 42 Binoculars | High-Performance Outdoor Optics
