Rothco G.I. Canteen Straw Kit: Field Manual & SOP

Category: Hydration System Straws

Difficulty Level: Tier 1: No Training Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco G.I. Canteen Straw Kit is a hands-free hydration adapter system used by military personnel, law enforcement, and field operators to consume water continuously during dismounted operations, patrols, and forced marches without stopping or unseathing the canteen.

The kit converts any standard 1, 2, or 5-quart G.I. canteen into a continuous-access hydration system using four components: a threaded canteen cap adapter, a 3-foot vinyl drinking hose, a bite-valve drinking valve, and an integrated positioning clip. The cap adapter replaces the standard canteen cap and creates a sealed, leak-resistant interface. The vinyl hose routes from the canteen on the operator's belt or pack up to the shoulder, where the clip secures the valve near the chin for immediate access without significant head movement.

Proper deployment requires pre-mission sanitization, correct cap adapter installation, deliberate hose routing that avoids interference with weapons shouldering or critical equipment access, and line priming before operational use. The biological contamination hazard is the most serious sustainment risk. The interior of the drinking hose supports bacterial and mold growth if not cleaned, sanitized, and fully dried after every use. Only plain water should be used unless the operator is prepared to conduct immediate and thorough post-use cleaning per the full protocol.

In freezing temperatures, water retained in the hose and valve will solidify rapidly, rendering the system inoperable. After each drink in cold environments, the operator must forcefully blow air back through the hose to return residual water to the canteen reservoir. Insulating sleeves offer supplemental protection but do not replace this procedure.

Field Application Steps

1. INSPECT THE SYSTEM: Before each mission or outing, visually inspect the full length of the vinyl hose for cracks, punctures, or brittleness. Verify the cap adapter gasket is present, clean, and pliable, confirm the valve opens and closes correctly and is free of debris, and check that the positioning clip holds sufficient tension to secure to gear.

2. SANITIZE ALL COMPONENTS: Clean and sanitize the entire system before first use and after every field use. Flush all components with warm, soapy water, scrubbing the hose interior with a long thin brush, then submerge all components in a solution of 1 to 2 drops of unscented bleach per liter of water or hydration cleaning tablets for 5 to 10 minutes. Rinse thoroughly with clean water and allow all components to dry completely before assembly.

3. FILL THE CANTEEN: Fill the canteen with potable water, leaving a small air gap at the top to prevent pressure-related leakage during movement.

4. INSTALL THE CAP ADAPTER: Remove the standard G.I. canteen cap and firmly thread the cap adapter onto the canteen opening. Confirm the threads are not cross-threaded, the seal is fully seated, and the adapter is hand-tight. Invert the filled canteen and check for any leakage from the cap seal before stowing.

5. STOW THE CANTEEN AND ROUTE THE HOSE: Place the canteen into its designated pouch on your load-bearing equipment or pack. Route the vinyl hose upward toward your dominant or non-dominant shoulder per unit SOP, avoiding snag points and ensuring the hose does not interfere with shouldering a rifle or accessing critical equipment.

6. SECURE THE VALVE: Use the integrated positioning clip to affix the drinking valve high on a shoulder strap, positioned near the chin for immediate access without significant head movement.

7. PRIME THE LINE: Before beginning movement, draw on the drinking valve to pull water through the full length of the hose, removing retained air. This ensures immediate water delivery on all subsequent draws without delay.

8. MANAGE NOISE DISCIPLINE IN TACTICAL ENVIRONMENTS: As the canteen empties, air entering the hose can produce audible gurgling. Keep the canteen as full as operationally practical to minimize this risk during tactical movement.

9. CLEAR THE HOSE IN FREEZING CONDITIONS: After each drink in temperatures at or near freezing, forcefully blow air back through the hose toward the canteen to return all residual water to the reservoir. Do not rely solely on insulating sleeves as a freeze-prevention measure.

10. CONDUCT POST-USE CLEANING AND DRYING: After every field use, disassemble the hose from the cap adapter and remove the drinking valve if possible. Flush, sanitize, rinse, and hang the hose vertically to air dry completely with the valve propped open. Every component must be fully dry before reassembly or storage.

11. STORE THE KIT CORRECTLY: Store the clean, dry kit disassembled in a cool, dark, and dry location. Do not compress or coil the hose tightly during storage. Proper long-term storage preserves both material integrity and readiness.

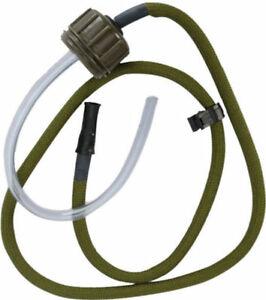

Equip Yourself: Rothco G.I. Canteen Straw Kit | On-the-Go Hydration
