Rothco Low Profile Plate Carrier Field Manual: SOP for Concealable Armor

How to Guides - Product Field Manual SOPs - Luminary Global

Rothco Low Profile Plate Carrier Field Manual: SOP for Concealable Armor

Category: Bullet Proof Vests

Difficulty Level: Tier 3: Field Competency Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco Low Profile Plate Carrier is a minimalist ballistic armor platform designed to house front and rear 10" x 12" hard or soft armor plates in a concealed configuration, used by undercover law enforcement, executive protection details, first responders, and vetted civilians requiring discreet ballistic readiness.

The carrier's protective capability is determined entirely by the armor plates installed by the operator. The carrier itself provides zero ballistic protection. Its 600D polyester chassis with padded mesh lining prioritizes concealment and freedom of movement over load-bearing capacity, making it a dedicated plate housing system rather than a tactical equipment platform. Plate pockets are secured by hook-and-loop bottom flaps that prevent ejection during dynamic movement, inversion, or casualty handling.

Proper fitment is a non-negotiable safety requirement for this system. Adjustable shoulder straps must position the top edge of the front plate at the sternal notch, ensuring coverage of the heart, lungs, and major vessels of the upper thoracic cavity. Any deviation below this reference point constitutes a critical system failure. Adjustable elasticated waist straps secure the carrier to the torso's midline, preventing lateral and vertical shift during deployment.

The carrier's scope of protection covers the immediate thoracic cavity only. It does not protect the shoulders, abdomen, or sides, and does not support side plates. The system is not a load-bearing platform, and attaching external pouches or gear to the 600D polyester construction risks catastrophic seam and strap failure. Concealment depends on the operator's body type, plate thickness, and cover garment selection.

Field Application Steps

1. PLATE INSTALLATION - REAR POCKET: Lay the carrier flat with the interior mesh lining facing up and open the hook-and-loop bottom flap of the rear plate pocket. Insert one 10" x 12" ballistic plate with the Strike Face oriented outward, away from the body, and verify the plate is seated fully at the top of the pocket.

2. PLATE INSTALLATION - SECURE AND REPEAT: Close the bottom flap of the rear pocket, ensuring full hook-and-loop engagement with no gaps. Repeat the entire insertion and verification process for the front plate pocket.

3. INITIAL DONNING: Disconnect one waist strap to open the carrier, then place it over your head with the front plate panel positioned against your chest.

4. RIDE HEIGHT ALIGNMENT: Adjust the shoulder straps until the top edge of the front plate rests precisely at your sternal notch, the soft depression at the base of your throat. Confirm the rear plate covers the corresponding area across your back. This alignment is non-negotiable for vital organ coverage.

5. GIRTH AND FINAL FIT: Reconnect the waist strap and pull both side straps to achieve a snug fit that prevents shifting without restricting breathing. Confirm the front and rear plate pockets are centered on your body's midline.

6. FUNCTION CHECK: Perform dynamic movements including torso twists, arm raises, and forward bends to confirm the carrier moves with your body without significant shifting. Take several deep breaths to verify the fit does not impede respiration.

7. CONCEALMENT CHECK: Don your cover garment, such as a jacket, hoodie, or button-down, and check your profile in a mirror to identify any overt printing. Adjust the garment fit or carrier strap tension as needed to achieve the required low-visibility profile.

8. PRE-DEPLOYMENT INSPECTION: Inspect all seams and strap anchor points for fraying, separation, or broken threads. Check the 600D polyester body for rips or excessive abrasion, and confirm all hook-and-loop surfaces are free of debris and retain full fastening capability. Remove the carrier from service immediately if any critical failure is identified.

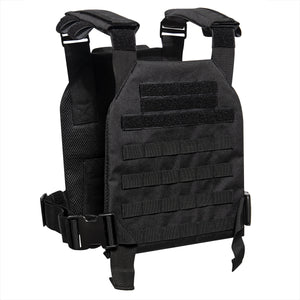

Equip Yourself: Rothco Low Profile Plate Carrier Vest – Concealable Tactical Armor Platform

Ensure you have the right gear before an emergency strikes.

View Product
