Quick Overview

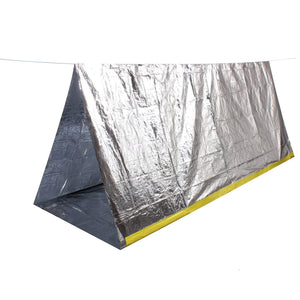

The Rothco Survival Tent is an ultra-lightweight, reflective aluminum foil tube shelter used by one or two individuals in emergency survival scenarios to mitigate hypothermia risk by blocking convective, evaporative, and radiant heat loss.

The shelter addresses three primary vectors of heat loss through its material construction and deployment design. The windproof outer shell blocks convective heat loss caused by moving air. The waterproof, rain-resistant barrier prevents evaporative heat loss from wet conditions. The inner reflective aluminum surface reduces radiant heat loss by reflecting body heat back to occupants. The material provides no insulation value on its own, making proper deployment and ground insulation critical to thermal performance.

Deployment requires two stable anchor points less than 9.8 feet apart, a 3-meter nylon ridgeline threaded through the tube, and environmental materials to secure the base. The shelter forms an A-frame structure suspended from the ridgeline and anchored at the base with rocks, logs, or packed soil. A ground insulation layer using packs, spare clothing, or a survival blanket must be placed on the floor to counter conductive heat loss to the ground. Occupants should position heads at the downwind opening for air quality and partially block the windward end to reduce drafts.

This is a limited-use emergency tool, not a recreational shelter. The material is highly flammable and non-breathable, requiring at least one end to remain partially open at all times to prevent oxygen deprivation and CO2 buildup. Readiness protocol includes pre-deployment inspection in factory packaging and kit augmentation with duct tape, additional paracord, and a survival blanket.

Field Application Steps

1. SITE ASSESSMENT: Locate two stable anchor points such as trees, rock outcroppings, or vehicle roof racks that are less than 9.8 feet apart, with an ideal spacing of 7 to 8 feet. Select a position on the leeward side of a natural windbreak to reduce convective exposure.

2. GROUND PREPARATION: Clear the ground surface of rocks, sticks, or debris that could puncture the shelter floor. If time and materials permit, lay down pine boughs, dry leaves, or a spare blanket to create a thermal barrier against ground conduction.

3. UNPACK COMPONENTS: Carefully remove the folded tube tent and 3-meter nylon rope from packaging. Avoid hasty or forceful movements that could tear the reflective material.

4. THREAD THE RIDGELINE: Unfold the tube tent and feed the entire length of the 3-meter nylon rope through the interior of the tube from one open end to the other.

5. SECURE FIRST ANCHOR: Tie one end of the rope to the first anchor point at a height of 3 to 4 feet using a Taut-Line Hitch or two half-hitches to prevent slipping under load.

6. TENSION THE RIDGELINE: Move to the second anchor point, pulling the rope and suspended tent taut. Secure the free end with minimal sag so the shelter hangs with a defined A-frame profile between both points.

7. FORM THE A-FRAME BASE: Pull the bottom edges of the tube tent outward and away from the center ridgeline on both sides to open the A-frame and maximize interior space.

8. ANCHOR THE BASE: Place heavy, flat rocks, logs, or packed soil firmly along the entire length of both bottom edges. This step is critical to prevent wind intrusion and maintain tent shape under adverse conditions.

9. ENTRY AND OCCUPATION: Enter by crawling low from one open end. If two occupants are deploying, the first operator moves to the far end before the second enters.

10. INSULATE FROM GROUND: Place packs, spare clothing, or a survival blanket on the interior floor as a thermal barrier against conductive heat loss to the ground surface.

11. SEAL FOR WIND: Partially block the windward opening with a backpack or available debris. Position both occupants with heads toward the downwind end for improved air quality and reduced draft exposure.

12. MAINTAIN VENTILATION: Keep at least one end of the shelter partially open at all times to prevent CO2 buildup and oxygen deprivation. This requirement is non-negotiable and risk is elevated with two occupants inside.
