Rothco SWAT Rappelling Rope: Field Manual and SOP

How to Guides - Product Field Manual SOPs - Luminary Global

Rothco SWAT Rappelling Rope: Field Manual and SOP

Category: Climbing Rope

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Rothco SWAT Static Rescue Rope is a 7/16-inch static life-safety rope with a 7,660 lb minimum breaking strength, used by tactical law enforcement, military units, search and rescue teams, and industrial rescue personnel for controlled descents, patient hauling, and tensioned rescue systems.

The rope's core construction delivers a 1.7% static elongation at 300 lbs of load, a defining operational characteristic that eliminates the bouncing effect during rappels, maximizes hauling efficiency, and provides the predictability required in tensioned high-line systems. This low elongation is a deliberate design parameter, not a limitation. It is also the precise reason this rope must never be used to arrest a dynamic fall. In a fall arrest scenario, the static construction transfers the full impact force directly to the operator and anchor system, leading to catastrophic failure or severe trauma.

The braided polyester sheath functions as the rope's primary interface with the operator, hardware, and environment. Polyester construction provides superior resistance to friction-generated heat, abrasion, UV degradation, and chemical contaminants encountered in field environments. The 7/16-inch diameter achieves a balance between weight and handling performance, maintaining compatibility with standard rappelling devices, ascenders, and pulley systems while delivering a substantial grip surface for gloved hands during rappelling and manual hauling operations.

Operational readiness for this rope depends on disciplined inspection and sustainment protocols. Full tactile and visual inspection is required before and after every use, with formal documented inspections conducted on a scheduled basis per department protocol. Retirement is mandatory upon any shock load event, core exposure, severe sheath damage, structural anomalies, chemical contamination, or when the manufacturer or agency-defined service life has been reached regardless of apparent condition.

Field Application Steps

1. PRE-DEPLOYMENT INSPECTION: Un-bag or un-coil the entire rope length and perform a full tactile and visual inspection. Feel for flat spots, lumps, or diameter inconsistencies indicating core damage, and inspect the sheath for cuts, fraying, glazing, or discoloration from chemical or heat exposure. Any discrepancy found immediately retires the rope from service.

2. ANCHOR SYSTEM SELECTION AND RIGGING: Identify a structurally sound, non-movable anchor point rated well beyond the anticipated operational load. Construct a redundant anchor system using two independent equalized points whenever feasible, and confirm all anchor components including webbing and hardware are rated for life-safety use and correctly configured.

3. ROPE DEPLOYMENT AND EDGE PROTECTION: Package the rope in a deployment bag for a clean, fast descent, or flake it carefully onto a ground tarp if a bag is unavailable. Secure the rope to the anchor using a recognized life-safety knot such as a Figure-8 on a bight or a termination plate, then deploy the rope over the edge and confirm the distal end reaches the target landing zone. Install dedicated edge rollers or appropriate padding on all sharp or abrasive surfaces before the rope contacts the edge. Failure to protect the edge can result in catastrophic rope failure.

4. SYSTEM LOADING AND BUDDY CHECK: Have the first operator rig the rappel device onto the rope. The secondary operator or team leader performs a full buddy check covering harness buckles, rappel device function, carabiner gate closure, and anchor rigging before any load is committed to the system.

5. CONTROLLED DESCENT EXECUTION: Have the operator weight the system slowly and deliberately before committing fully to the rappel. Descend in a controlled manner and avoid rapid, high-friction movements that generate excessive heat on the sheath and hardware.

6. ROPE RETRIEVAL AND POST-OPERATION INSPECTION: Retrieve the rope carefully and do not drag it over abrasive surfaces. Perform a post-operation inspection identical to the pre-deployment check, noting any sheath damage, glazing, or structural anomalies encountered during the operation.

7. CLEANING AND STORAGE: Clean the rope using certified rope wash or cold water only. Never use detergents, bleach, or chemical solvents. Air dry the rope fully out of direct sunlight before storage, and never use a machine dryer.

8. ROPE LOG UPDATE: Update the rope log with the date, type of use, load conditions, and any notable incidents including shock loads or abrasion contact. This log governs the rope's service life and retirement schedule.

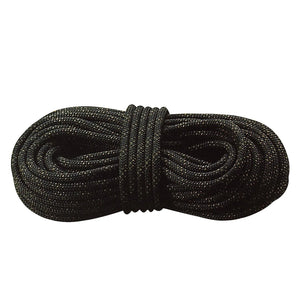

Equip Yourself: Rothco SWAT Rappelling Rope – USA-Made Static Rescue Line
