Silva Starter 1-2-3 Compass: Field Manual and SOP

Category: Magnetic Navigational Compasses

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Silva Starter 1-2-3 is a magnetic baseplate compass used for land navigation with a topographic map by wilderness travelers, SAR teams, and emergency preparedness operators when GPS is unavailable, unreliable, or denied.

The compass functions through three integrated components working in sequence: the transparent baseplate aligns with map points, the rotating bezel captures the grid azimuth, and the liquid-dampened magnetic needle provides the constant magnetic north reference. The Orienting Arrow, known operationally as "the shed," serves as the alignment gate between the bezel and the needle. The internal declination scale pre-corrects all bearings for the offset between true north and magnetic north, eliminating the need for mental arithmetic on every leg of a route.

Deployment follows the Silva 1-2-3 protocol: the compass is placed on the map to connect current position to destination, the bezel is rotated to align orienting lines with the map's north-south grid lines, and the bearing is read at the index line. In the field, the operator rotates their body until the red needle is centered inside the orienting arrow, then sights a fixed aiming point along the direction of travel arrow. This leap-frog technique, repeated at each intermediate point, minimizes cumulative navigational error across distance.

Operational readiness requires a pre-mission inspection covering five checkpoints: housing integrity, needle function, bezel resistance, marking legibility, and lanyard condition. A large or mobile air bubble in the housing is a no-go condition requiring immediate replacement. The compass must be kept at least 5 to 10 feet from vehicles and firearms, and 150 feet from high-tension power lines, to prevent magnetic interference from corrupting readings.

Field Application Steps

1. SET DECLINATION: Before any navigation begins, adjust the internal declination scale to match the local magnetic declination value. For westerly declination, add the value; for easterly declination, subtract it. If no declination scale is present, apply the correction mentally to every bearing using the rule: "West is Best, East is Least."

2. INSPECT THE COMPASS: Hold the compass level and verify the needle swings freely, settles on north, and re-acquires north smoothly when rotated. Confirm the housing has no large or mobile air bubble, the bezel rotates 360 degrees with firm consistent resistance, all markings are fully legible, and the lanyard attachment point is intact.

3. PLACE THE COMPASS ON THE MAP: Lay the map on a flat surface and place the long edge of the baseplate to form a straight line connecting your current position to your destination. Confirm the direction of travel arrow points toward your destination, not away from it.

4. ACQUIRE THE GRID AZIMUTH: Hold the baseplate firmly in place and rotate the bezel until the orienting lines inside the housing are parallel with the map's north-south grid lines. Verify the "N" mark on the bezel points to map north, then read the bearing in degrees at the index line. Do not move the bezel after this point.

5. LIFT AND LEVEL THE COMPASS: Remove the compass from the map and hold it level in front of your body with the direction of travel arrow pointing directly away from you. Keep the compass at least 5 to 10 feet from firearms, vehicles, or knives, and at least 3 to 5 feet from phones or radios, to prevent magnetic interference.

6. EXECUTE RED IN THE SHED: Rotate your entire body until the red end of the magnetic needle is perfectly centered inside the orienting arrow outline. The direction of travel arrow now points along your required bearing.

7. IDENTIFY AN AIMING POINT: Sight along the direction of travel arrow and identify a distinct, stationary object at distance, such as a specific tree or rock formation, that falls directly on your bearing line. Travel to that object without watching the compass.

8. LEAP-FROG TO DESTINATION: Upon arriving at each aiming point, repeat the Red in the Shed procedure and identify a new forward aiming point. Continue this sequence until you reach your destination. This technique minimizes cumulative navigational drift over extended distances.

9. MANAGE LOW-LIGHT CONDITIONS: If operating at night, charge the luminous markings on the compass by exposing them to a flashlight for several seconds before darkness. Recharge as needed. Luminous markings support night navigation for up to four hours per charge.

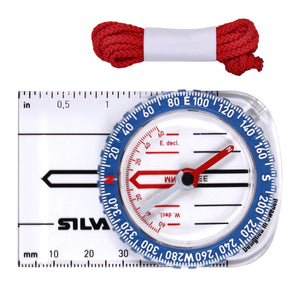

Equip Yourself: Silva Starter 1-2-3 Compass | Beginner's Orienteering Compass
