SOP: Deploying the EVAC Systems Model A Personal Escape Kit

Category: Climbing Rope Bags

Difficulty Level: Tier 4: Professional or Advanced Training Required

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

A rope bag for personal escape, specifically the EVAC Systems Model A Personal Escape Kit, is a compact life-safety system carrying a 50-foot NFPA-rated rope and descending hardware that enables trained operators including firefighters, law enforcement tactical personnel, and search and rescue teams to execute self-rescue egress from elevated positions when primary exit routes are compromised.

The Model A kit is built around a 50-foot Sterling 8mm NFPA-compliant rope, two aluminum locking D-carabiners, and a Rescue 8 descender, all housed in a low-profile EP420 bag measuring 8.5 by 4 by 5.5 inches. The bag is designed for stowage inside a turnout coat pocket or attachment to a belt via integrated webbing loops, keeping the system on the operator at all times. The mesh front panel provides passive ventilation that protects the nylon rope from moisture degradation during extended storage. The 50-foot working distance is measured from the anchor point to the ground, not from a floor number, and represents the absolute operational ceiling of the system.

Deployment follows a four-phase protocol: anchor identification and validation, system deployment and anchoring, harness rigging and system check, and controlled egress descent. Anchor selection is a critical decision point, with acceptable options including exposed structural wall studs, load-bearing pipes such as radiator systems, and exceptionally heavy immovable furniture. The Rescue 8 descender is a non-mechanical friction control device that functions reliably with gloved hands and is less susceptible to debris-related malfunction than complex mechanical alternatives. The brake hand must never leave the rope during descent.

All components require inspection before each operational shift, after every use including training deployments, and before being placed in service. Chemical contamination from petroleum products or acids can degrade nylon rope without any visible evidence, requiring immediate retirement. Any shock load event requires retirement of all software and hardware components regardless of apparent condition. The guiding retirement principle from the field manual is direct: when in doubt, throw it out.

Field Application Steps

1. TRANSMIT MAYDAY: Before initiating any egress action, broadcast a MAYDAY call with your location, unit identification, and intention to bail out so incident command has your position and status.

2. IDENTIFY AND VALIDATE ANCHOR: Select a structurally sound anchor capable of supporting your full body weight plus shock load. Acceptable anchors include exposed wall studs, load-bearing pipes such as radiator systems, and exceptionally heavy immovable furniture. Reject drywall, window frames, and any object you cannot definitively verify as structurally sound.

3. CLEAR THE EGRESS PATH: Remove all glass and debris from the window frame before deploying the rope. Sharp edges can sever or abrade the rope during descent, leading to catastrophic failure.

4. EXTRACT KIT AND EXPOSE ANCHOR HARDWARE: Remove the Model A bag from your pocket or belt, open it, and grasp the pre-positioned anchor carabiner.

5. SECURE THE ANCHOR: Wrap the anchor end of the rope around the chosen anchor point. Attach the carabiner back to the rope with the gate facing away from all contact points, then verify the gate is fully closed and locked.

6. TEST THE ANCHOR: Apply a strong, sharp tug to seat the anchor and confirm stability before committing your full body weight to the system.

7. DEPLOY THE ROPE: Drop or throw the bag out the window, allowing the full 50 feet to pay out. Visually check below for snags or knots in the rope if conditions permit.

8. CONFIRM HARNESS CONNECTION: Verify the Rescue 8 descender is securely attached via its locking carabiner to the correct attachment point on your Class II or escape harness. The gate must be closed and locked.

9. LOAD THE DESCENDER: Form a bight in the slack rope. Pass the bight through the large ring of the Rescue 8, then loop it over and around the small ring. Dress the rope neatly and evenly.

10. ESTABLISH BRAKE HAND: Grasp the rope extending from the small ring of the Rescue 8. This is your brake hand and it must not leave the rope at any point during descent.

11. TRANSITION TO THE WINDOW AND LOAD THE SYSTEM: While maintaining brake hand control, move to the window and maintain three points of contact with the structure for as long as possible. Transfer your weight onto the rope system slowly and deliberately, avoiding any jumping or shock-loading of the anchor.

12. EXECUTE CONTROLLED DESCENT: Regulate descent speed using your brake hand. To slow or stop, bring your hand across your body to increase friction. To increase speed, reduce the angle. Keep your feet on the structure to fend off obstacles and scan continuously below for hazards as you descend.

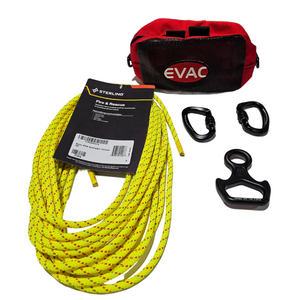

Equip Yourself: EVAC Systems Personal Escape Kit – Model A (50' 8mm Rope)
