SOP: Kemp USA Metal Buckle Spineboard Strap for Patient Immobilization

How to Guides - Product Field Manual SOPs - Luminary Global

SOP: Kemp USA Metal Buckle Spineboard Strap for Patient Immobilization

Category: Manual Stretchers & Gurneys

Difficulty Level: Tier 3: Field Competency Required

Get the Complete Field Manual

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

The Kemp USA Two-Piece Spineboard Strap is a metal buckle and swivel speed clip restraint system used by EMS, fire-rescue, SAR technicians, and lifeguards to achieve rapid, reliable patient immobilization on pin-equipped spineboards during extrication and transport operations.

The strap system consists of four integrated components: 2-inch heavy-duty nylon webbing at 72 inches total length, a metal swivel speed clip that anchors to spineboard pins, an automotive-style push-button metal buckle for one-handed release, and a latch plate with friction adjustment slide for tension control. The two-piece design allows simultaneous staging from both sides of the board, reducing application time in high-pressure field scenarios. Compatibility is limited exclusively to spineboards equipped with integrated metal or molded plastic attachment pins. Use on any other board type constitutes misuse and creates a risk of equipment failure.

Deployment follows a five-step protocol: stage and position straps at the chest, pelvis, and lower extremities; anchor speed clips to spineboard pins; secure and tighten using a cross-chest configuration for torso straps; verify immobilization and manage excess webbing; and release via single push-button actuation during patient transfer or emergency. The standard tightness check requires the ability to slide two fingers between the strap and the patient, confirming adequate restraint without compromising respiration or circulation. Straps are secured in sequence: torso, then pelvis, then extremities.

Pre-deployment readiness requires visual and tactile inspection of webbing, buckle function, and speed clip gate tension before each operational period. Any strap showing frayed webbing, deformed hardware, or intermittent buckle function must be removed from service immediately. Post-use decontamination with soap and water or an approved hospital-grade disinfectant compatible with nylon and metal is required, and straps must be fully dry before storage to prevent degradation.

Field Application Steps

1. PRE-DEPLOYMENT INSPECTION: Before each shift, inspect all webbing for frays, tears, burns, or chemical contamination. Engage and disengage the buckle 3 to 5 times to confirm positive lock and immediate release, then depress the speed clip gate to verify spring tension and inspect the clip body for cracks or deformation.

2. STRAP STAGING AND PLACEMENT: Pass the buckle (female) portion through a hand-hold on one side of the board. Position straps to cover three zones: upper chest inferior to the axilla, pelvis across the iliac crests, and lower extremities above the knees. Repeat on the opposite side using the speed clip (male) portion.

3. ANCHOR SPEED CLIPS TO BOARD PINS: Identify the spineboard pin adjacent to each hand-hold. Firmly press the gate of the metal swivel speed clip against the pin until it audibly and physically clicks into place, then tug the strap to confirm secure seating before proceeding.

4. SECURE AND TIGHTEN STRAPS: Bring the buckle end over the patient and apply a cross-chest configuration for all torso straps to prevent vertical sliding during angled carries. Insert the latch plate into the buckle until it clicks locked, then pull the free-running webbing end through the friction slide to remove all slack.

5. VERIFY IMMOBILIZATION AND MANAGE EXCESS WEBBING: Attempt to gently shift the patient. There should be no significant movement relative to the board. If the patient is conscious, verbally confirm comfortable breathing, then tuck all excess webbing under the strap to eliminate snagging hazards during movement.

6. TIGHTNESS CHECK: Slide two fingers between the strap and the patient at each strap location. The fit should be snug enough to prevent patient movement but must not impede respiration or circulation. After straps are applied, assess breathing and distal pulses, particularly for chest and extremity straps.

7. STRAP RELEASE: To release, press the push-button on the buckle firmly to eject the latch plate. Execute one-handed if required during patient transfer to a hospital bed or in response to an emergent patient condition such as vomiting.

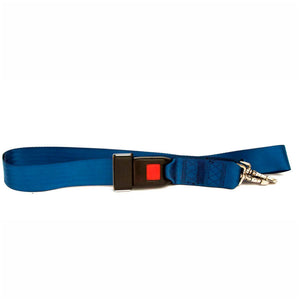

Equip Yourself: Kemp USA Two-Piece Spineboard Strap – Metal Buckle & Swivel Speed Clip
