Ultralight 2-Person Dome Tent: Field Manual & SOP for Emergency Shelter

Category: Tents

Difficulty Level: Tier 2: Basic Preparedness Skills

Complete Field Manual - FREE

Download the official step-by-step PDF guide.

📥 Download PDF Guide

Written by: Valerie Ellis Lavin

Quick Overview

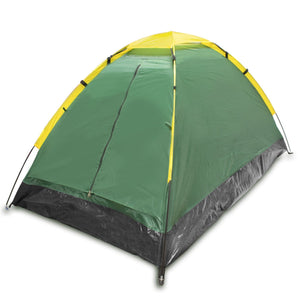

The Luminary Ultralight 2-Person Compact Dome Tent is a 3.8-pound free-standing shelter system used by displaced individuals, emergency evacuees, and field operators requiring rapid, portable protection from precipitation, insects, wind, and ground moisture in non-severe conditions.

The tent provides a primary barrier against environmental threats through its lightweight fabric body, integrated breathable mesh roof vents, and two shock-corded collapsible poles that form a rigid dome under tension. The cap-style rain fly offers conditional weather protection over the roof vents and should be deployed when rain or heavy dew is forecasted. The system packs to 22 inches by 5 inches by 3 inches, making it compatible with bug-out bag integration or vehicle kit storage. It is rated for two occupants but performs at higher operational comfort as a single-person shelter with room for equipment.

Deployment follows a five-step protocol: site selection and hazard clearance, component layout and pole assembly, tent erection via the crossed-pole dome method, conditional rain fly installation, and anchoring using metal stakes on soft ground or interior ballast on hard surfaces. The tent is free-standing and can be erected on varied terrain including paved surfaces where staking is not feasible. Anchoring is required in any wind condition to prevent total shelter loss.

Readiness requires initial rehearsal assembly in a controlled environment before a real-world scenario. Post-deployment maintenance includes cleaning with plain water only, complete air-drying before storage to prevent mildew and fabric degradation, and proper repacking using a tight lengthwise roll. Periodic inspection should confirm pole shock cord elasticity, seam tape integrity, and zipper and grommet function.

---

Field Application Steps

1. SITE SELECTION AND TERRAIN SURVEY: Select the most level ground available and avoid depressions or low-lying areas where water will collect. Inspect above and around the site for dead trees, loose branches, sharp rocks, ant hills, and other ground or overhead hazards.

2. FOOTPRINT CLEARANCE: Clear the full 74-inch by 47-inch tent footprint of any sharp sticks, rocks, or debris that could puncture the tent floor. A compromised floor eliminates your moisture barrier and degrades shelter integrity.

3. COMPONENT LAYOUT AND POLE ASSEMBLY: Unpack all components and unfold the tent body flat on the cleared footprint, floor side down. Unfold each shock-corded pole so that the sections snap fully into seated connections, confirming both poles are complete and rigid before proceeding.

4. TENT ERECTION: Slide each assembled pole through the fabric sleeves or attach to the corresponding clips, forming an X pattern across the top of the tent body. Flex one pole into an arch and seat each end into diagonally opposite corner grommets, then repeat with the second pole to raise the complete dome structure.

5. RAIN FLY INSTALLATION: If rain is present, imminent, or heavy dew is expected overnight, drape the rain fly centered over the mesh roof vents and secure using its integrated clips or ties. In clear, dry conditions, omit the rain fly to maximize interior ventilation through the breathable mesh vents.

6. ANCHORING ON SOFT GROUND: Pull each corner loop taut and drive a metal stake through it at a 45-degree angle pointing away from the tent. Repeat at all corners to resist wind displacement and maintain structural geometry.

7. ANCHORING ON HARD SURFACES: When stakes cannot be driven, place gear or weighted objects inside the tent along the perimeter. The tent is free-standing but unanchored, and any wind condition creates a total shelter loss risk without interior ballast.

---
